IC200PWR002E

/ 4.9
1001 reviews | Need a Specific Revision?
The GE Fanuc IC200PWR002E is a VersaMax 24 VDC expanded power supply that provides 3.3 VDC and 5 VDC backplane power for CPUs, NIUs and I/O modules, with a combined maximum output current of 1.5 A.
In Stock
Ships by Wednesday, September 30
Fast Shipping Available
Get a quick price for IC200PWR002E
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC200PWR002E

  • Manufacturer:
    General Electric
  • Part Number:
    IC200PWR002E
  • Product Family:
    GE VersaMax
  • Product Type:
    Backplane Power Supply Module
  • Stock:
    1
  • Input Voltage:
    18–30 VDC
  • Rated Input Voltage:
    24 VDC
  • Input Power:
    11 W
  • Hold-up Time:
    10 ms
  • Inrush Current:
    20 A @ 24 VDC; 25 A @ 30 VDC
  • Output Voltage:
    3.3 VDC, 5 VDC
  • Total Output Current:
    1.5 A max.
  • 3.3 VDC Output Current:
    1.0 A max.
  • 5 VDC Available Output Current:
    1.5 A − 3.3 V output current
  • Protection Functions:
    Short-circuit protection, overload protection, reverse polarity protection
  • Hazardous Area Rating:
    Class I, Division 2, Groups A/B/C/D
  • Temperature Code:
    T4A
  • Nameplate Maximum Ambient Temperature:
    60°C
  • Terminals:
    DC+, DC−
  • Weight:
    1.2 kg
  • Estimated shipping dimensions:
    12.6x4.8x4.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Performance & Efficiency Installation & Integration Safety & Compliance

Features:

  • Expanded 3.3 VDC capacity supports up to 1.0 A on the 3.3 V output.
  • The power supply provides a specified hold-up time of 10 ms.
  • Inrush current is rated at 20 A at 24 VDC and 25 A at 30 VDC.
The current ordering configuration is IC200PWR002E, identified as a VersaMax 24 VDC expanded 3.3 V power supply. GE Fanuc technical documentation lists the electrical specifications under the base catalog number IC200PWR002, so the complete nameplate marking should be checked when matching an installed unit.

Within a VersaMax station, the module supplies the backplane power required for controller, network-interface and I/O operation. Its expanded 3.3 V capacity supports configurations that require a higher allocation on the 3.3 V rail.

Before installation, calculate the backplane demand of all connected modules and confirm that the load remains within the available 3.3 VDC and 5 VDC capacity. The DC input must also comply with the grounding requirements stated in the manufacturer’s manual.

Availability: Contact Apter Power to confirm condition, revision marking, quantity and current lead time.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Primary power source for a modular control station built around a VersaMax CPU.
  • Backplane power source for a networked I/O station using a VersaMax NIU.
  • Supplemental power for an expanded station using a Power Supply Booster Carrier.
  • The module has a rated input power of 11 W, supporting compact VersaMax station power requirements.
  • A specified hold-up time of 10 ms helps maintain backplane power during brief input-voltage interruptions.
  • Inrush current is 20 A at 24 VDC and 25 A at 30 VDC, which should be considered when selecting upstream power equipment.

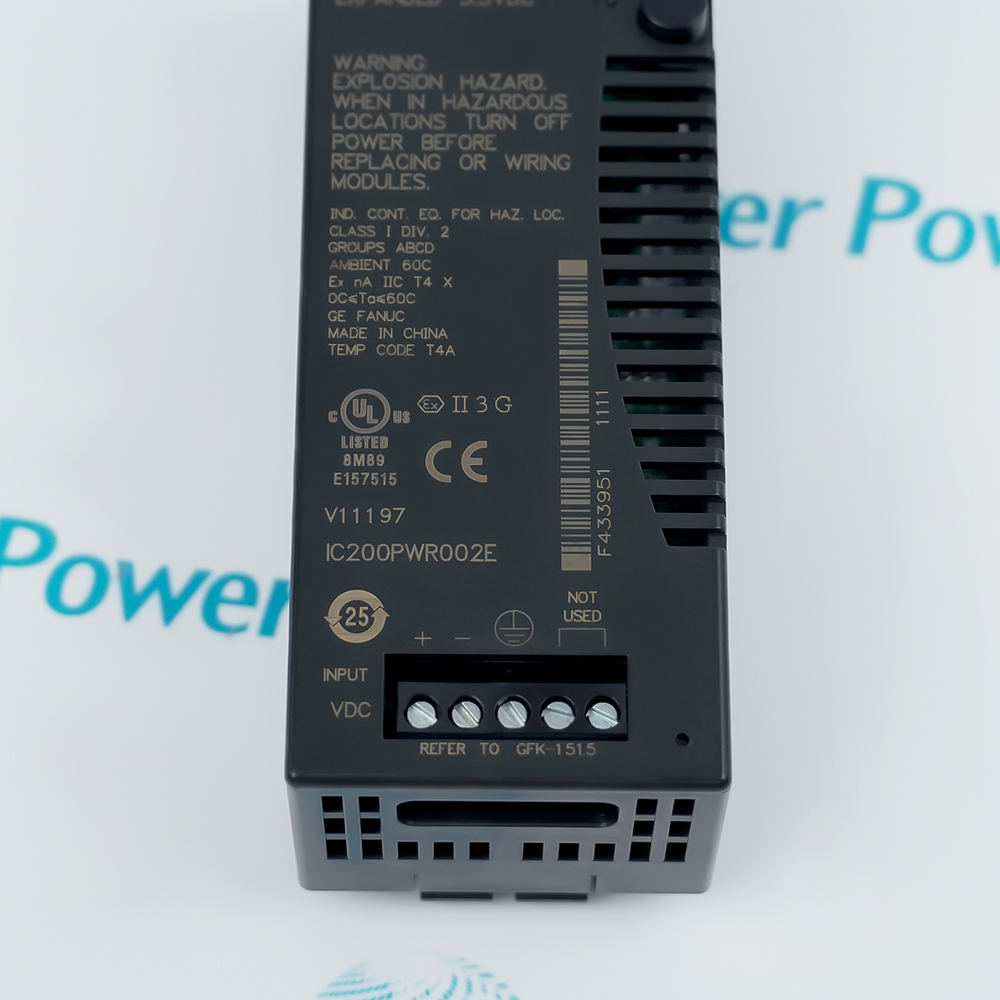

  • The DC− terminal must be connected to frame or earth ground before the power supply is placed into service.
  • DC− is internally connected to the module frame, creating a ground-referenced DC input arrangement.
  • A floating DC source must not be used because it does not meet the manufacturer’s specified wiring configuration.
  • The module is marked for Class I, Division 2, Groups A, B, C and D hazardous-location installations.
  • Its T4A temperature code must be considered when evaluating suitability for a classified operating area.
  • The marked maximum ambient temperature is 60°C and must not be exceeded during installed operation.
Description

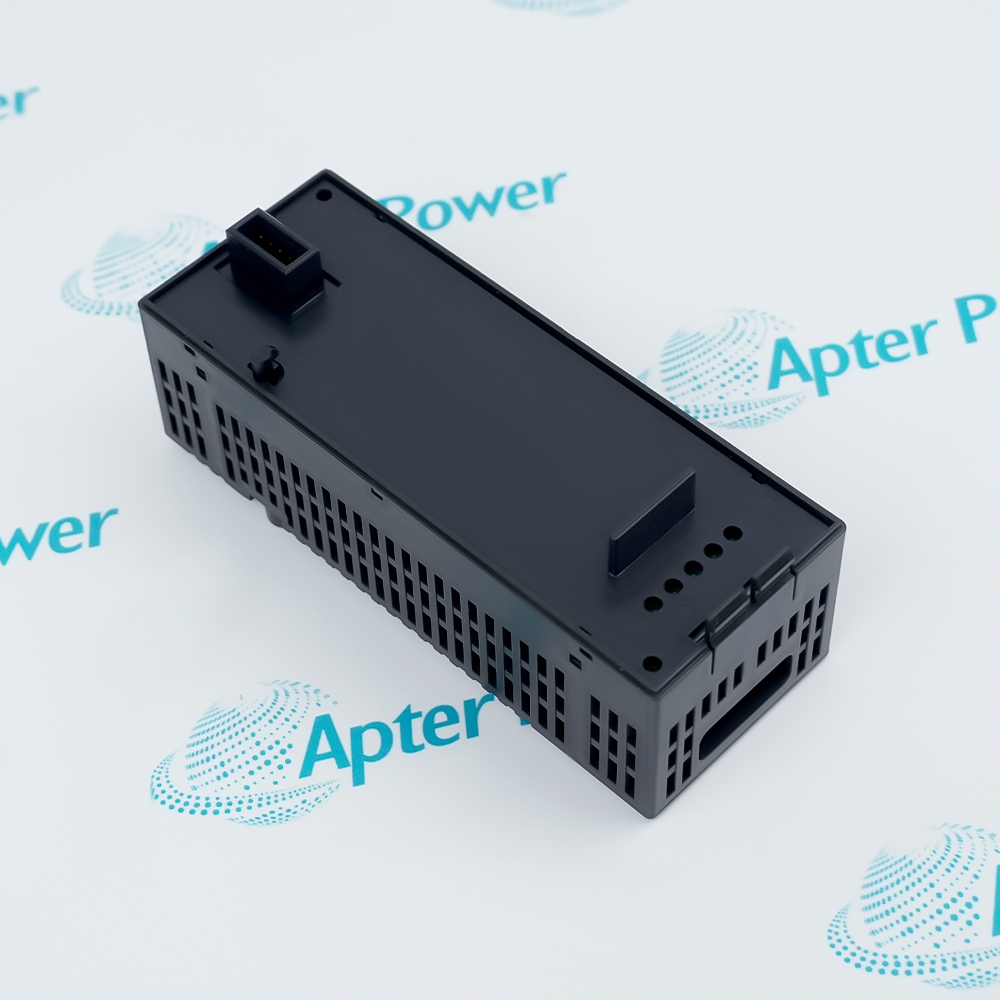

The GE Fanuc  IC200PWR002E converts a nominal 24 VDC input into the 3.3 VDC and 5 VDC backplane power required by VersaMax CPUs, Network Interface Units and I/O modules. It is designed for building or expanding modular controller and distributed I/O stations.

Its two output rails share a maximum capacity of 1.5 A, with up to 1.0 A available at 3.3 VDC and the remaining current assigned to the 5 VDC output. Short-circuit, overload and reverse-polarity protection support reliable operation within industrial control systems.

The IC200PWR002E serves as the main station power source when mounted on a CPU or NIU. Where additional backplane capacity is required, it can be fitted to a compatible Power Supply Booster Carrier as a supplemental supply.

Revisions

Revision Part #

Also known as

IC200PWR002A
IC200PWR002-A, Series A, Rev A
IC200PWR002AE
IC200PWR002-AE, Series AE, Rev AE
IC200PWR002B
IC200PWR002-B, Series B, Rev B
IC200PWR002C
IC200PWR002-C, Series C, Rev C
IC200PWR002D
IC200PWR002-D, Series D, Rev D
IC200PWR002E
IC200PWR002-E, Series E, Rev E
IC200PWR002F
IC200PWR002-F, Series F, Rev F
IC200PWR002G
IC200PWR002-G, Series G, Rev G
IC200PWR002H
IC200PWR002-H, Series H, Rev H
IC200PWR002J
IC200PWR002-J, Series J, Rev J
Alternative Names
IC200PWR002E IC200-PWR-002E IC200 PWR 002E IC200PWR002 E GE IC200PWR002E GE Fanuc IC200PWR002E VersaMax IC200PWR002E IC200PWR002E 24VDC Power Supply
Technical notes
IC200PWR002E accepts 18–30 VDC input and provides overload, short-circuit and reverse-polarity protection for grounded VersaMax installations.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What are the input specifications of the IC200PWR002E?
The IC200PWR002E accepts an input range of 18–30VDC with a nominal input voltage of 24VDC. Its rated input power is 11W, and its specified hold-up time is 10 milliseconds.
Where is the IC200PWR002E installed in a VersaMax system?
The IC200PWR002E can be mounted on a VersaMax CPU or NIU as the station’s primary power supply. It may also be installed on a compatible Power Supply Booster Carrier to provide supplemental backplane power.
What is the output capacity of the IC200PWR002E?
The IC200PWR002E supplies 3.3VDC and 5VDC outputs with a combined maximum current of 1.5A. The 3.3VDC output can supply up to 1.0A, and the remaining capacity is available to the 5VDC output.
Which systems and modules are compatible with the IC200PWR002E?
The IC200PWR002E is designed for GE Fanuc VersaMax modular control and I/O systems. It provides backplane power for compatible VersaMax CPUs, Network Interface Units and I/O modules, subject to the total system power requirement.
Does replacing an IC200PWR002E require PLC program changes?
The IC200PWR002E does not store the PLC application program, so replacing it with the same compatible model normally does not require logic changes. Before replacement, isolate power and verify the input voltage, revision, grounding and total backplane load.
Which manual covers the IC200PWR002E, and what information is needed for an enquiry?
The IC200PWR002E is covered by the GE Fanuc VersaMax Modules, Power Supplies and Carriers User’s Manual, publication GFK-1504K. For an enquiry, provide the complete IC200PWR002E model number, quantity, required condition, destination and a nameplate photograph when revision matching is important.
