CC-PAIH01 51405038-175

/ 4.9
1001 reviews | Need a Specific Revision?

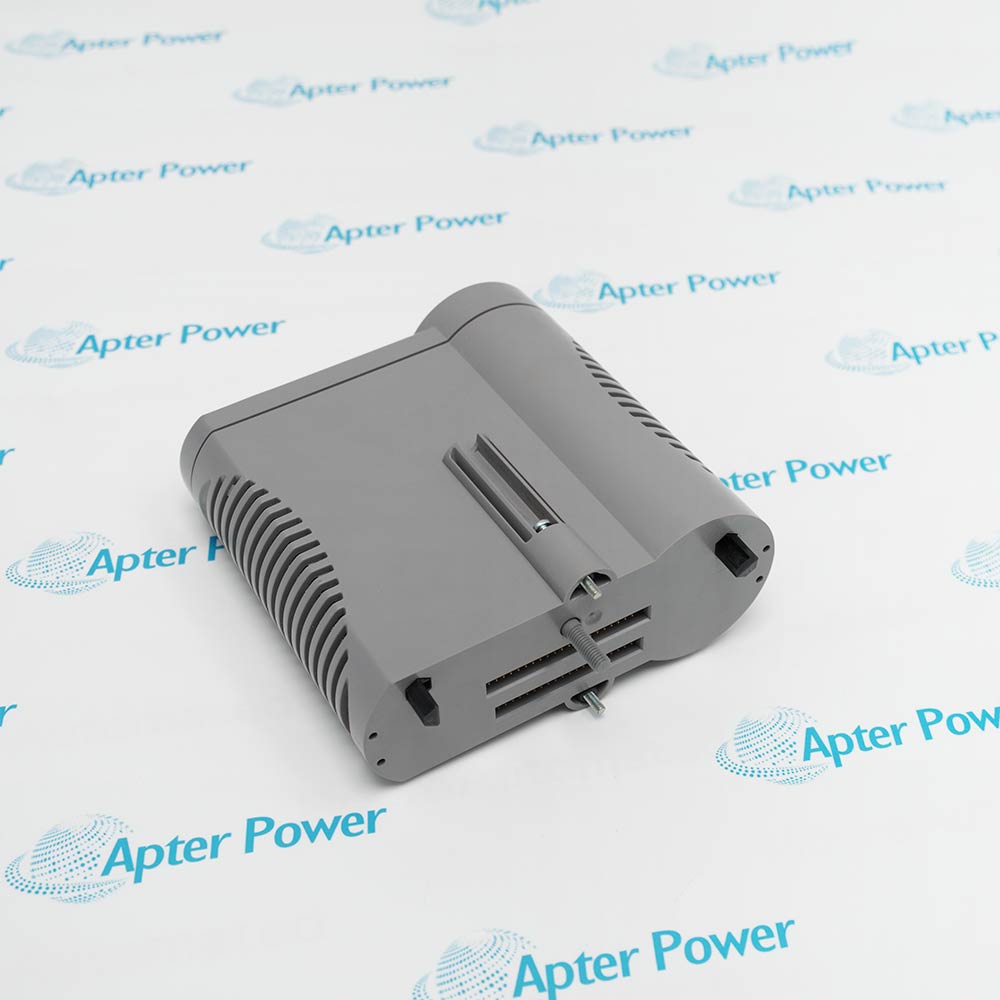

Honeywell CC-PAIH01 is a 16-channel Series C high-level analog input module that accepts current and selected voltage signals and supports HART communication.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for CC-PAIH01 51405038-175
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CC-PAIH01 51405038-175

  • Manufacturer:
    Honeywell
  • Part Number:
    CC-PAIH01 51405038-175
  • Product Family:
    Honeywell DCS
  • Product Type:
    High-Level Analog Input with HART Module
  • Stock:
    1
  • Input Channels:
    16
  • Input Types:
    Current and supported voltage signals
  • Input Ranges:
    0-5 V, 1-5 V, 0.4-2 V, and 4-20 mA
  • A/D Resolution:
    16 bit
  • Input Scan Rate:
    50 ms
  • HART:
    Supported
  • Redundancy:
    Optional
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications PAIH01 Signal Map HART Variable Access PAIH02 Replacement

Product overview:

  • Signal role: High-level analog input with HART support
  • Channel count: 16 inputs with 16-bit conversion
  • Lifecycle: Superseded; CC-PAIH02 is the Honeywell spare replacement
Honeywell CC-PAIH01 is a 16-channel Series C high-level analog input module that accepts current and selected voltage signals and supports HART communication.

Availability is subject to Apter Power's current inventory and configuration confirmation.
Honeywell CC-PAIH01 Specifications

General

  • ManufacturerHoneywell
  • ModelCC-PAIH01
  • ConditionNew and factory sealed
  • Product FamilyHoneywell Experion Series C I/O
  • Current loops: 4-20 mA inputs use the IOTA load resistor
  • Voltage channels: Channels 13-16 support the documented voltage ranges
  • Differential option: Channels 13-16 can be configured for differential operation
  • Device status: HART status and configuration data are supported
  • Control variables: Secondary and tertiary variables can be used in control
  • Acquisition: Multiple modems support collection of HART variables
  • Superseded model: Honeywell superseded CC-PAIH01 with CC-PAIH02
  • Installed base: CC-PAIH02 is the available spare
  • IOTA review: Confirm IOTA and redundant-partner hardware before replacement
Description
Honeywell CC-PAIH01 is a 16-channel Series C high-level analog input module that accepts current and selected voltage signals and supports HART communication.

The official specification documents 16-bit conversion, a 50 ms scan rate, open-wire diagnostics, optional redundancy, and voltage-input capability on channels 13 through 16 with the standard IOTA.

Honeywell lists CC-PAIH01 as superseded by CC-PAIH02 and states that CC-PAIH02 is the available spare for installed CC-PAIH01 modules.

Alternative Names
CC-PAIH01 Honeywell CC-PAIH01 Honeywell Experion CC-PAIH01 CC-PAIH01 High-Level Analog Input with HART Module CC-PAIH01 datasheet CC-PAIH01 quotation CCPAIH01
Technical notes
CC-PAIH01: Sixteen-channel HART analog input module with optional redundancy; Honeywell designates CC-PAIH02 as its spare replacement. Confirm the exact Honeywell model and compatible hardware before ordering.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does CC-PAIH01 support HART instruments?
Yes. It supports HART status, configuration, and multivariable data.
How many analog inputs are provided by CC-PAIH01?
Honeywell specifies 16 input channels.
Which voltage ranges can PAIH01 measure?
The official ranges include 0-5 V, 1-5 V, and 0.4-2 V.
Can every PAIH01 channel accept voltage input?
No. The standard PAIH01 arrangement supports voltage on channels 13-16.
What is the PAIH01 conversion resolution?
The module uses a 16-bit A/D converter.
How quickly does CC-PAIH01 scan its inputs?
Honeywell specifies a 50 ms input scan rate.
Is CC-PAIH01 still Honeywell's recommended spare?
No. Honeywell identifies CC-PAIH02 as the available spare.
What must match when replacing redundant PAIH01 modules?
Verify IOTA type, hardware revisions, firmware, and redundant-partner compatibility.
