        • Lifecycle status

          Discontinued / Obsolete by OEM
          Product manuals, quotations, and system matching for Honeywell 10024/H/I are available through Apter Power.

        10024/H/I

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

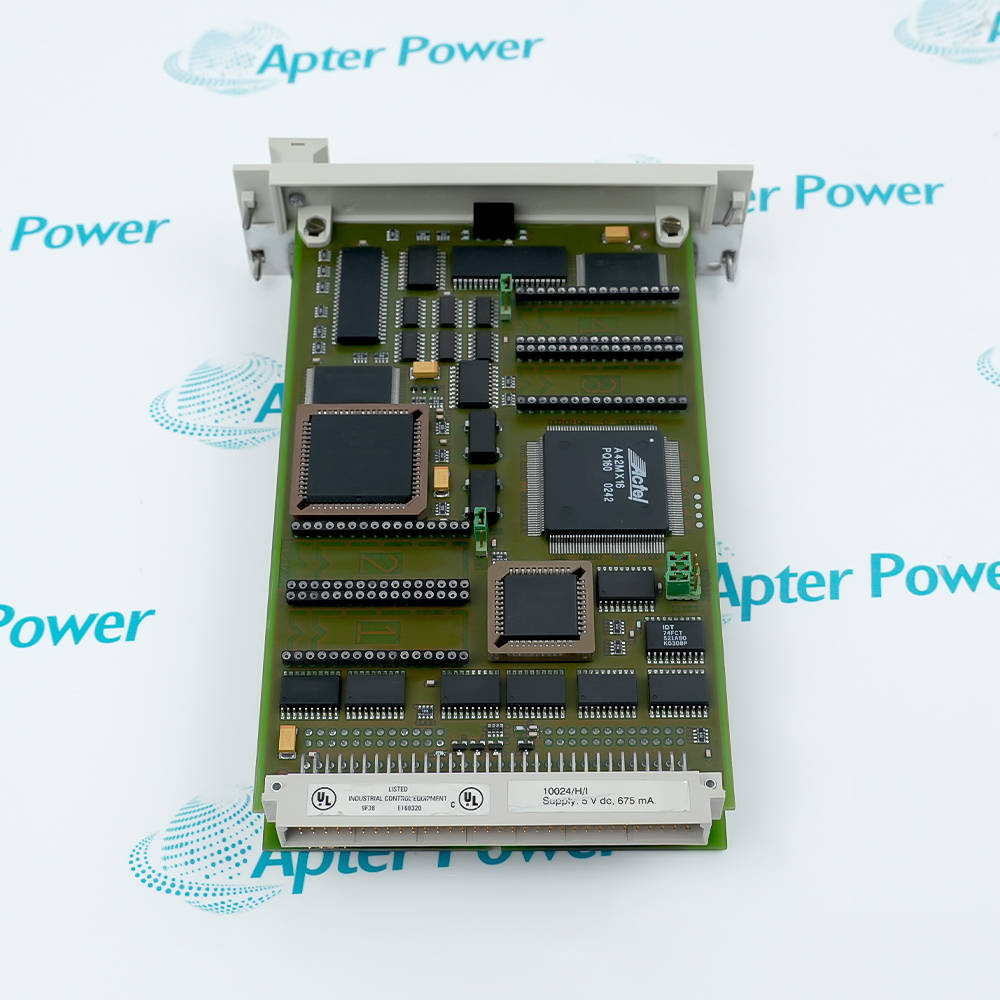

        Honeywell 10024/H/I is an FSC enhanced communication module combining an internal Central Part link with an isolated RS-485/RS-422 interface.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for 10024/H/I
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 10024/H/I

        • Manufacturer:
          Honeywell
        • Part Number:
          10024/H/I
        • Product Family:
          Honeywell FSC Series
        • Product Type:
          FSC Enhanced Communication Module
        • Stock:
          1
        • Interface layout:
          Two separate serial connectors
        • Type number:
          26900
        • Top interface A:
          RS-422 with readback for internal Central Part communication
        • Bottom interface B:
          Galvanically isolated RS-485/RS-422
        • H-interface maximum rate:
          2 Mbaud
        • I-interface maximum rate:
          1 Mbaud
        • I-interface galvanic isolation:
          Greater than 6 kV
        • H-interface maximum cable length:
          1.5 m at 2 Mbaud
        • I-interface maximum cable length:
          1.2 km at 100 Kbaud
        • Connector type:
          Two male 9-pin connectors
        • Maximum I interfaces per system:
          16
        • Software requirement:
          2.78f or later; configuration 530 or later
        • Space requirement:
          8 HP, 3U
        • Power requirement:
          5 V DC, 675 mA
        • Ripple limit:
          Less than 50 mV peak-to-peak
        • Approvals:
          CE, UL and TÜV
        • Weight:
          0.661 lbs (0.3 kg)
        • Estimated shipping dimensions:
          4x18.5x12.8cm
        • Tariff Code:
          8538900000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Interface Roles Cable Distance Electrical Separation System Loading

        Features:

        • H interface provides the internal RS-422 readback connection
        • I interface supplies an isolated RS-485/RS-422 external path
        • Two male nine-pin connectors keep both serial roles on one module
        The H and I suffixes describe different electrical interfaces, so the two connectors cannot be exchanged even though they share the same physical pin count.

        Isolation belongs only to the external I path, allowing that link to cross equipment boundaries without applying the same assumption to the internal H connection.

        Baud rate and cable length are coupled on the I interface; increasing speed reduces the permitted run from kilometer scale to a shorter cabinet-to-equipment route.
        The Honeywell 10024/H/I FSC Enhanced Communication Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Honeywell 10024/H/I FSC Enhanced Communication Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

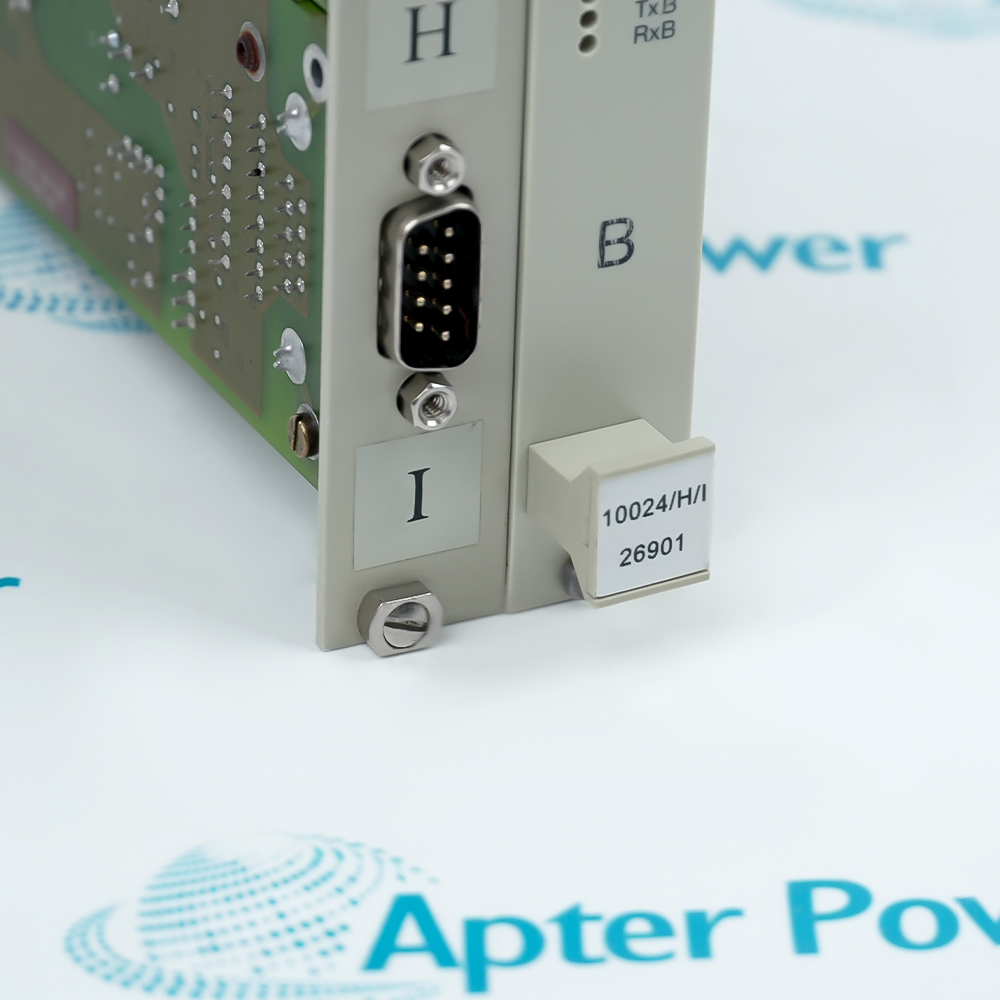

        H and I connections on one module

        • H path: Interface A is the H path for internal Central Part communication.
        • I path: Interface B is the isolated I path for external RS-485 or RS-422 equipment.
        • Connector caution: Identical connector size does not make the two paths interchangeable.

        How transmission rate limits the I link

        • Long run: The I interface reaches 1.2 km only at 100 Kbaud.
        • High speed: At 1 Mbaud the documented maximum cable length is 120 m.
        • Selection rule: Cable selection must follow the configured rate rather than the connector type alone.

        Where the isolation barrier sits

        • Isolation barrier: The isolated I interface provides greater than 6 kV galvanic separation.
        • Internal link: The internal H interface remains non-isolated within the Central Part.
        • Wiring plan: Grounding and shield planning therefore differ between the two serial paths.

        Power and card-count boundaries

        • Supply current: One module draws 675 mA from the 5 V DC logic supply.
        • Interface count: A system supports up to sixteen I interfaces in the documented arrangement.
        • Rack space: The module occupies eight HP and three U in the Central Part rack.
        Description
        Honeywell 10024/H/I is an enhanced communication module for an FSC Central Part, combining two different serial paths on one card. Interface A is the H connection for internal Central Part communication, while interface B is the isolated I connection for external RS-485 or RS-422 equipment.

        Through the upper connector, 10024/H/I uses RS-422 with readback at up to 2 Mbaud over the short internal cable path. This H interface has no galvanic isolation because it remains within the redundant Central Part arrangement.

        The lower connector of 10024/H/I separates its RS-485/RS-422 field-side path with greater than 6 kV galvanic isolation. Cable distance changes with the selected baud rate, so the longest I-interface run applies only at the lower documented transmission rates.

        Both communication paths in 10024/H/I draw logic power from the 5 V DC Central Part supply, with a documented module load of 675 mA. The live backplane connection means the card is not removed or inserted while Central Part power is present.
        Alternative Names
        Honeywell 10024/H/I 10024/H/I Enhanced Communication Module Honeywell FSC COM Module 10024/H/I 26900 FSC Communication Card Honeywell 10024-H-I Serial Module FSC H-I Interface Module 10024/H/I RS422 RS485 Card Honeywell Enhanced COM H/I
        Technical notes
        Do not remove Honeywell 10024/H/I while the FSC Central Part is powered; its H and I connectors serve different electrical paths.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Which connector on Honeywell 10024/H/I belongs to the internal Central Part link?
        The upper H connector on Honeywell 10024/H/I is the RS-422-with-readback path for internal Central Part communication. Keep it separate from the lower isolated I connector used for external RS-485/RS-422 wiring.
        Why do Honeywell 10024/H/I cable limits change with baud rate?
        On the isolated I interface of Honeywell 10024/H/I, higher data rates allow shorter cable runs: the documented maximum falls from 1.2 km at 100 Kbaud to 120 m at 1 Mbaud. Select the cable length from the actual configured rate.
        Where is galvanic isolation provided on Honeywell 10024/H/I?
        Look at the lower I interface of Honeywell 10024/H/I for the greater-than-6-kV galvanic barrier. The upper H connector remains a non-isolated internal Central Part path.
        How should the two nine-pin plugs on Honeywell 10024/H/I be matched?
        Identify the upper plug as H and the lower plug as I before reconnecting Honeywell 10024/H/I. Both are male nine-pin connectors, so connector shape alone does not prove the correct electrical path.
        What configuration baseline is required for Honeywell 10024/H/I?
        Check for software 2.78f or later and configuration 530 or later before commissioning Honeywell 10024/H/I. Both the running release and database level must satisfy the documented baseline.
        Can Honeywell 10024/H/I be removed from an energized FSC Central Part?
        Power isolation is required before Honeywell 10024/H/I is removed or inserted. The card is tied to the live Central Part backplane and 5 V DC supply, so energized handling can disturb connected hardware.
