        Honeywell 10310/2/1
        Honeywell 10310/2/1
        Honeywell 10310/2/1
        Honeywell 10310/2/1
        Honeywell 10310/2/1
        Honeywell 10310/2/1
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power supports Honeywell Safety Systems sourcing, document review, and exact-order quotation.

        10310/2/1

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

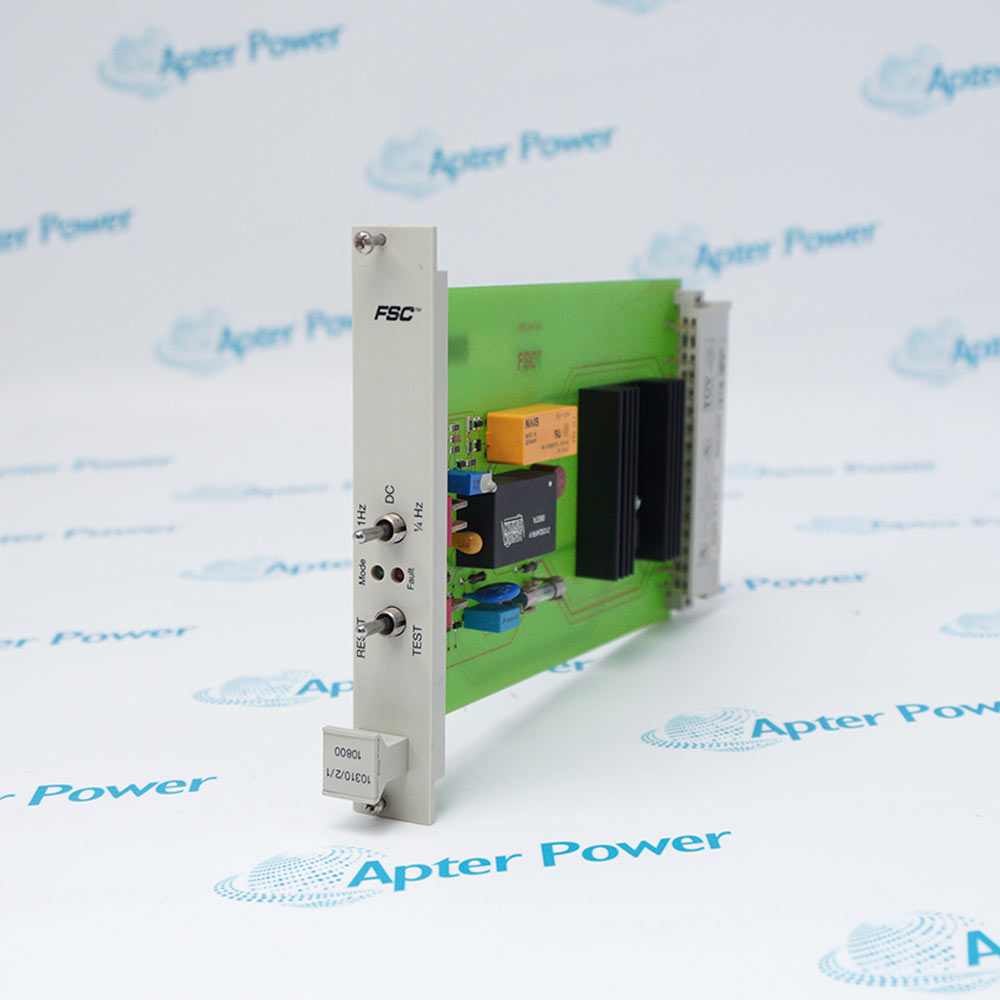

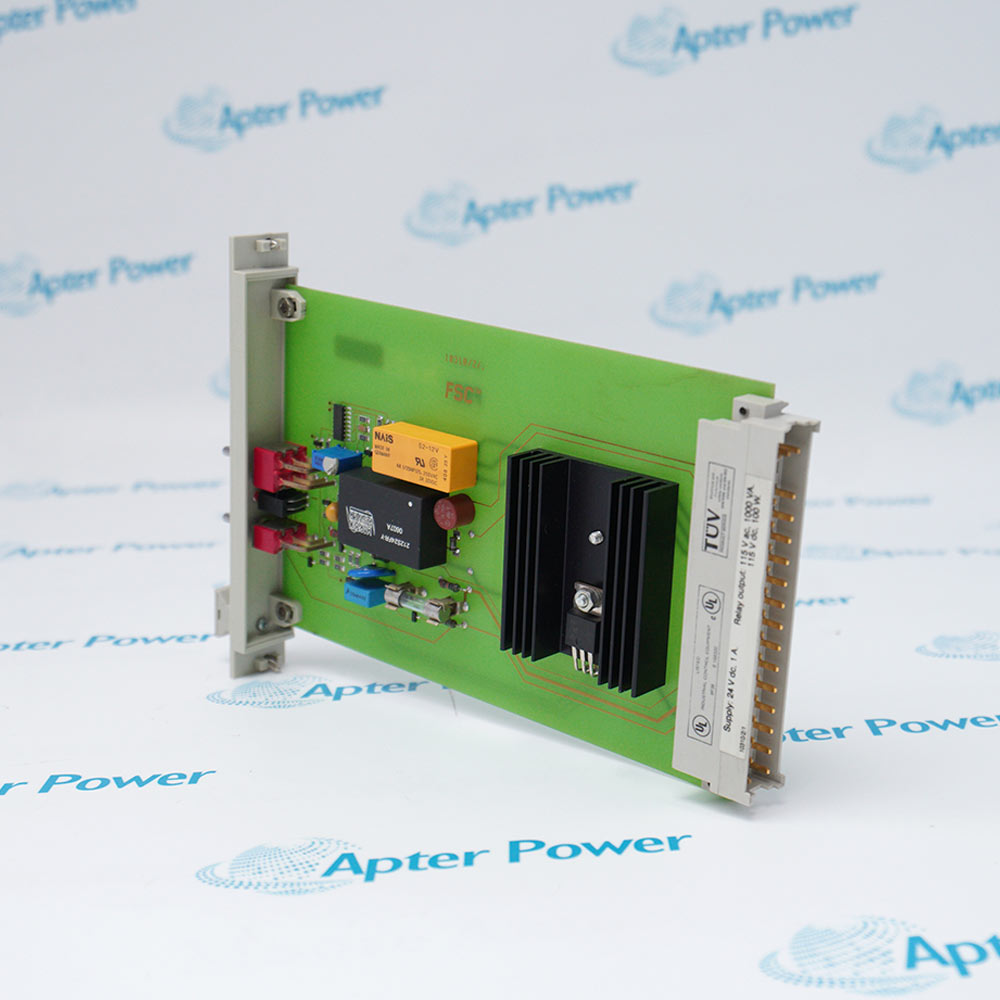

        Honeywell 10310/2/1 is a Safety Manager Earth Leakage Detector. It monitors earth leakage in 24, 48, 60 or 110 V DC installations.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for 10310/2/1
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 10310/2/1

        • Manufacturer:
          Honeywell
        • Part Number:
          10310/2/1
        • Product Family:
          Honeywell Safety Systems
        • Product Type:
          Earth Leakage Detector
        • Stock:
          1
        • Module function:
          Earth leakage detector for 24 V DC systems; also monitors 48 V, 60 V and 110 V DC systems
        • Supply:
          24 V DC, maximum 30 V DC; maximum 60 mA
        • Earth reference:
          -12 V DC with no earth fault
        • Connection modes:
          Continuous DC, 1 Hz or 0.25 Hz
        • Reset inputs:
          Rst24: 18 to 70 V DC; Rst110: 40 to 130 V DC
        • Output contact:
          Maximum 115 V DC and 2 A
        • Approvals:
          CE and UL
        • Key coding:
          Module and rack positions A5 and A11
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Applications Compatibility & Interoperability Protection Connectivity

        Features:

        • Monitors earth leakage in 24, 48, 60 or 110 V DC installations.
        • Offers continuous, 1 Hz and 0.25 Hz earth-reference modes.
        • Latches an earth-fault condition and de-energizes the relay until reset.
        The module supervises the relationship between an otherwise floating DC supply and earth so leakage paths can be detected before they develop into a second earth fault or an unsafe control condition.

        It connects earth to -12 V relative to the monitored supply zero. The connection can be continuous or pulsed at 1 Hz or 0.25 Hz; the slower pulsed mode supports fault tracing with a suitable DC current clamp.

        Use the exact A5/A11 key coding and verify the monitored system voltage, output-contact duty and reset circuit before replacement. Digital-input earth-fault detection may require the documented reverse-diode module.

        Availability is reviewed against the exact 10310/2/1 order identity and requested supply condition; manufacturer lifecycle status: Active / Available from OEM.
        Verified resources for Honeywell 10310/2/1:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • An earth fault sets an internal latch and de-energizes the output relay. The latched indication remains until a local reset or a valid Rst24/Rst110 reset signal is applied.
        • A test resistor and the separate Earth2 connection check both detector operation and the integrity of the earth connection. An open Earth1-to-Earth2 link prevents the fault latch from setting during the test.
        • Includes a manual self-test and earth-connection integrity check.
        • Monitors earth leakage across 24, 48, 60, and 110 V DC installations.
        • A5 and A11 key coding must match the intended rack positions.
        • Output-contact duty and reset wiring require verification before module replacement.
        • Detects leakage before a second earth fault creates an unsafe control condition.
        • Maintains a -12 V DC earth reference when no fault is present.
        • Supports continuous or pulsed monitoring for fault tracing with a DC clamp.
        • Provides continuous DC, 1 Hz, and 0.25 Hz connection modes.
        • Requires 24 V DC supply, limited to 30 V DC and 60 mA.
        • Separate reset inputs accept 18–70 V DC and 40–130 V DC ranges.
        Description
        Honeywell 10310/2/1 The module supervises the relationship between an otherwise floating DC supply and earth so leakage paths can be detected before they develop into a second earth fault or an unsafe control condition. It connects earth to -12 V relative to the monitored supply zero. The connection can be continuous or pulsed at 1 Hz or 0.25 Hz; the slower pulsed mode supports fault tracing with a suitable DC current clamp.

        An earth fault sets an internal latch and de-energizes the output relay. The latched indication remains until a local reset or a valid Rst24/Rst110 reset signal is applied. A test resistor and the separate Earth2 connection check both detector operation and the integrity of the earth connection. An open Earth1-to-Earth2 link prevents the fault latch from setting during the test.

        Use the exact A5/A11 key coding and verify the monitored system voltage, output-contact duty and reset circuit before replacement. Digital-input earth-fault detection may require the documented reverse-diode module.
        Alternative Names
        10310/2/1 10310 2 1 1031021 10310-2-1 Honeywell 10310/2/1 Honeywell 10310 2 1 Honeywell 1031021 Honeywell Safety Manager Earth Leakage Detector
        Technical notes
        Before installing Honeywell 10310/2/1, match the A5/A11 key coding, monitored DC voltage, output-contact duty, and reset circuit; the documented reverse-diode module may be required for digital-input earth-fault indication.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Why is Honeywell 10310/2/1 needed in a floating DC system?
        The module supervises the relationship between an otherwise floating DC supply and earth so leakage paths can be detected before they develop into a second earth fault or an unsafe control condition.
        Which documented DC supply limits apply to Honeywell 10310/2/1?
        The manufacturer data specifies Supply as 24 V DC, maximum 30 V DC; maximum 60 mA; the installed arrangement must match that exact value.
        How do the earth-reference modes work in Honeywell 10310/2/1?
        It connects earth to -12 V relative to the monitored supply zero. The connection can be continuous or pulsed at 1 Hz or 0.25 Hz; the slower pulsed mode supports fault tracing with a suitable DC current clamp.
        What rack and circuit details must match before installing Honeywell 10310/2/1?
        Use the exact A5/A11 key coding and verify the monitored system voltage, output-contact duty and reset circuit before replacement. Digital-input earth-fault detection may require the documented reverse-diode module.
        How should buyers interpret the availability of Honeywell 10310/2/1?
        The page records Active / Available from OEM. Apter Power reviews the exact order identity and condition without presenting this as an OEM delivery promise.
        What evidence identifies a Honeywell 10310/2/1 document request?
        Submit the complete nameplate, Output contact (Maximum 115 V DC and 2 A), installed system evidence, condition, quantity and destination so the document and quotation match 10310/2/1.
