        P0923RK
        P0923RK
        P0923RK
        P0923RK
        P0923RK
        P0923RK
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power supports Foxboro P0923RK quotations, manuals and configuration matching.

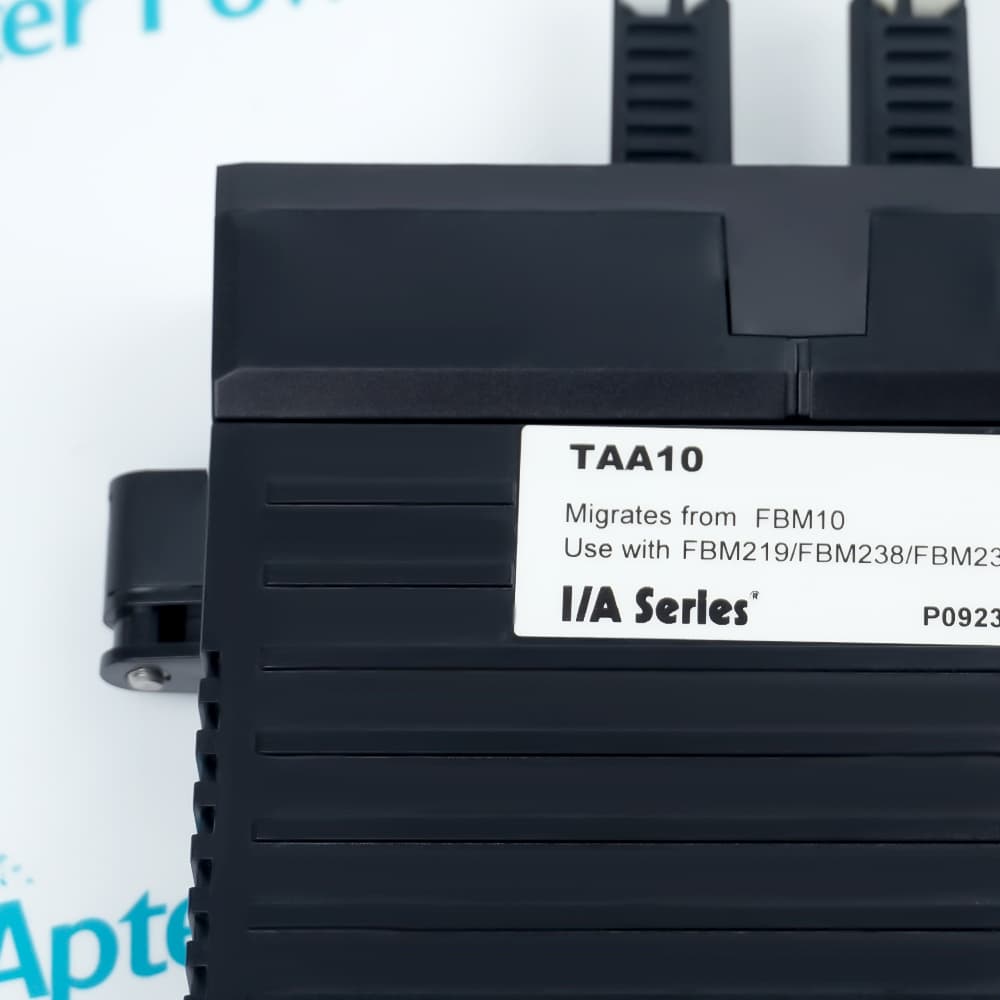

        P0923RK

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        Eight 120 V AC inputs and eight overload-protected outputs let Foxboro P0923RK connect retained 100 Series field wiring to upgraded I/A Series Fieldbus Modules.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for P0923RK
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for P0923RK

        • Manufacturer:
          Invensys
        • Part Number:
          P0923RK
        • Product Family:
          Foxboro
        • Product Type:
          TAA10 Termination Assembly Adapter
        • Stock:
          1
        • Input Channels:
          8 independent channels
        • Input Function:
          120 V AC voltage monitoring
        • Input On-State Voltage:
          79 to 132 V AC
        • Input Off-State Voltage:
          0 to 20 V AC
        • Input Filter Time:
          4, 8, 16 or 32 ms
        • Output Channels:
          8 independent channels
        • Output Function:
          120 V AC switching with overload protection
        • Output Voltage Range:
          79 to 132 V AC
        • Output Current:
          2 A max per channel
        • Module Output Limit:
          12 A max
        • Supply Voltage:
          24 V DC +5%, -10%
        • Power Consumption:
          11 W max
        • Heat Dissipation:
          25 W max
        • Communication:
          Redundant Fieldbus
        • Expansion Capacity:
          One compatible expansion module
        • Isolation:
          1250 V AC for 1 minute
        • Operating Temperature:
          0 to 60 °C
        • Relative Humidity:
          5 to 95% non-condensing
        • Contamination Class:
          ISA S71.04 Class G3
        • Weight:
          2.2046 lbs (1 kg)
        • Estimated shipping dimensions:
          27x16x3.5cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Signal Routing Output Recovery Expansion Pairing Conversion Fit

        Features:

        • Retains the existing termination cable assembly during a 100 Series FBM upgrade.
        • Separates eight monitored inputs from eight overload-protected switched outputs.
        • Uses an associated FBM238 or FBM239 for Digital I/O or Ladder Logic execution.
        The TAA10 main adapter occupies a defined position in a 100 Series conversion mounting structure.

        Field conductors remain on the original TCA while converted discrete states pass to and from the redundant Fieldbus.

        Operational, input-channel and output-channel indicators on the cable assembly support commissioning checks.

        The Foxboro P0923RK TAA10 Termination Assembly Adapter may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Foxboro P0923RK TAA10 Termination Assembly Adapter Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        From field wiring to Fieldbus

        • Field termination: The existing TCA keeps sensor and actuator conductors at the conversion structure.
        • Input path: Eight AC states pass through TAA10 monitoring circuits before the associated FBM processes them.
        • Output path: Eight FBM commands return through isolated switching channels to the field loads.
        • Fieldbus link: Both signal directions share the redundant Fieldbus connection to FBM238 or FBM239.

        Overload handling sequence

        • Detection: The channel circuitry monitors inrush and steady-state current conditions.
        • Open interval: An overload opens the switching path for approximately 64.5 line cycles.
        • Retry action: The output automatically attempts operation again after the open interval.
        • Protection limit: External fusing is required when a prospective fault can exceed the documented damage threshold.

        Main and expansion arrangement

        • Expansion position: The main adapter provides one connection for a compatible expansion module.
        • Typical partner: TAA15 is the normal expansion used when additional TAA10-style capacity is required.
        • Shared operation: The main and expansion assemblies work under the same associated FBM application.
        • Channel setup: Input options apply by module, while output behavior is selected by channel.

        Upgrade structure checks

        • Mounting frame: Install the adapter only in a listed 100 Series conversion mounting structure.
        • Cable assembly: Match the retained termination cable assembly to the required terminal-block or plug format.
        • Status access: Keep the cable-assembly indicators visible for operational and channel checks.
        • Cabinet conditions: Maintain the documented temperature, humidity and contamination limits around the conversion hardware.
        Description
        Foxboro P0923RK is the TAA10 main Termination Assembly Adapter for the I/A Series 100 Series Fieldbus Module Upgrade subsystem, linking retained termination cable assemblies and field wiring to 200 Series FBM238 or FBM239 hardware.

        Eight monitoring paths in Foxboro P0923RK accept 120 V AC field states, while eight independently indicated output channels switch 120 V AC loads with overload detection and automatic restart control. The associated FBM executes the Digital I/O or Ladder Logic application.

        Installed in a 100 Series conversion mounting structure, Foxboro P0923RK communicates through the redundant Fieldbus and can accept one compatible expansion module. Its TAA10 construction keeps the original field termination arrangement in the upgrade path.
        Alternative Names
        Foxboro P0923RK P0923RK TAA10 Foxboro TAA10 P0923RK I/A Series P0923RK P0923RK Termination Adapter P0923RK TAA10 Main Unit Foxboro I/A TAA10 P0923 RK
        Technical notes
        Foxboro P0923RK combines eight 120 V AC monitoring inputs and eight overload-protected switched outputs in the TAA10 main adapter.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Can Foxboro P0923RK retain the existing 100 Series field wiring during an upgrade?
        Yes. Foxboro P0923RK mounts in the conversion structure and connects the retained termination cable assembly, so the established field termination wiring remains in the upgrade path.
        Which upgraded Fieldbus Modules work with Foxboro P0923RK?
        Foxboro P0923RK is operated with an associated FBM238 or FBM239, which executes the Digital I/O or Ladder Logic application for the adapter channels.
        How does Foxboro P0923RK respond when an output overload occurs?
        Foxboro P0923RK opens the affected output circuitry for about 64.5 line cycles and then retries; fault current above the documented 50 A limit can damage the module.
        Can Foxboro P0923RK be used for 240 V AC field circuits?
        No. Foxboro P0923RK is the TAA10 version for 120 V AC monitoring and switching, with the documented operating window of 79 to 132 V AC.
        Can Foxboro P0923RK support an expansion module?
        Yes. Foxboro P0923RK accepts one compatible expansion module; the TAA15 is the expansion normally paired with the TAA10 function.
        What should be checked before installing Foxboro P0923RK in an existing cabinet?
        Confirm that Foxboro P0923RK will use a listed 100 Series conversion mounting structure, a 24 V DC supply, and environmental conditions within the documented temperature and humidity limits.
