    Apter Power provides Siemens 6ES7153-2AA02-0XB0 manuals and IM153-2 configuration matching.

6ES7153-2AA02-0XB0

/ 4.9
1001 reviews | Need a Specific Revision?

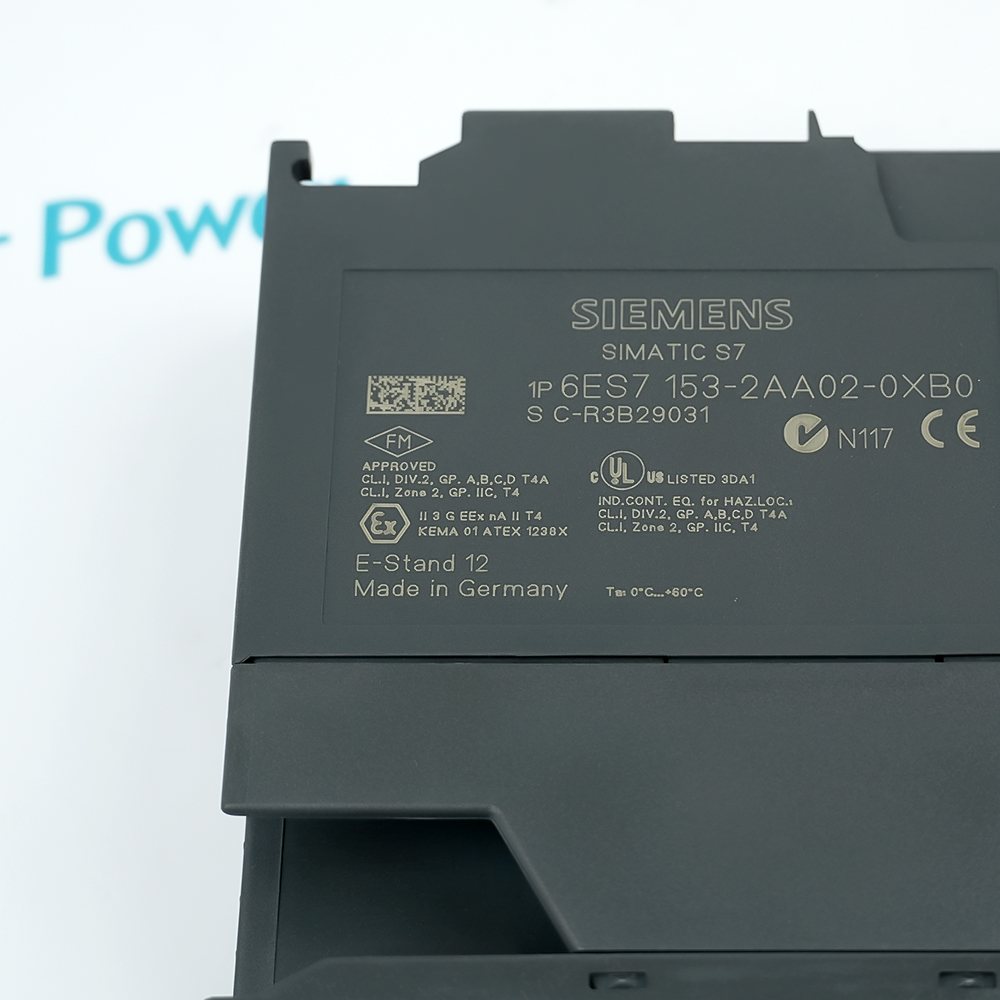

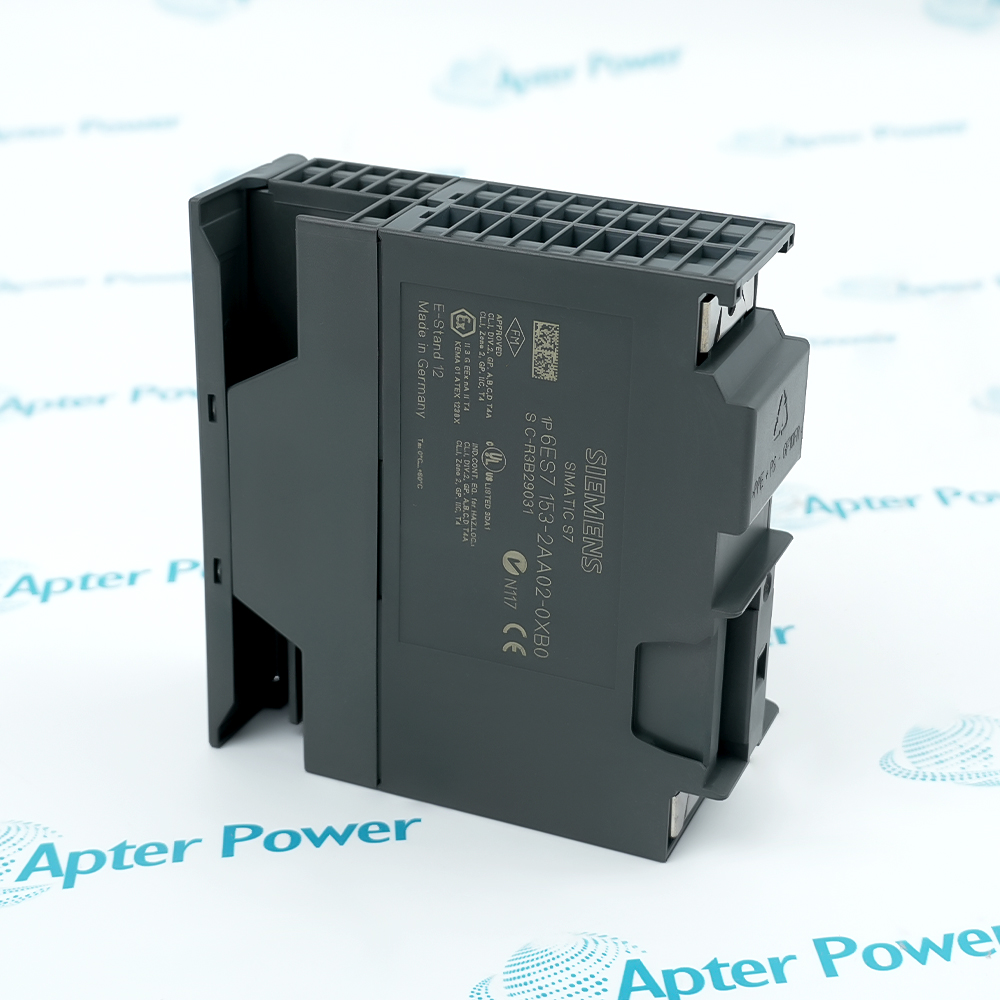

Siemens 6ES7153-2AA02-0XB0 is a SIMATIC DP IM153-2 interface module for an ET 200M station with up to eight S7-300 modules. The station head supports PROFIBUS DP, redundant operation, diagnostics and event time stamping.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7153-2AA02-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7153-2AA02-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7153-2AA02-0XB0
  • Product Family:
    Siemens ET 200M
  • Product Type:
    SIMATIC DP ET 200M IM153-2 Interface Module
  • Stock:
    1
  • Rated supply voltage:
    24 V DC
  • Maximum supply current:
    550 mA
  • Inrush current:
    2.5 A
  • Backplane-bus output:
    5 V DC, 1 A
  • Power loss:
    5 W typical
  • Input address space:
    128 bytes
  • Output address space:
    128 bytes
  • Modules per station:
    Up to 8
  • Fieldbus interface:
    PROFIBUS DP
  • Maximum transmission rate:
    12 Mbit/s
  • DP station address range:
    1...125
  • Redundant operation:
    Supported
  • Event time stamping:
    Supported
  • Time-stamp resolution:
    1 ms
  • Time-stamp buffer:
    15 blocks, 20 events per block
  • Degree of protection:
    IP20
  • Weight:
    0.64 lbs (0.292 kg)
  • Estimated shipping dimensions:
    15.5×13.2×5cm
  • Tariff Code:
    85176200
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Interoperability Diagnostics Firmware

Features:

  • The interface module connects an ET 200M distributed I/O station to PROFIBUS DP.
  • A station can accommodate up to eight supported S7-300 signal, function or communication modules.
  • The design supports redundant station arrangements and time stamping when the engineered system enables them.
Siemens 6ES7153-2AA02-0XB0 is the SIMATIC DP IM153-2 interface module for ET 200M, supplied as product version 07 for PROFIBUS-connected modular I/O.

It manages cyclic data exchange and diagnostic communication between the distributed S7-300 module group and the controlling DP master.

Verify the configured hardware catalog entry, station bus modules, address setting, redundancy concept and successor compatibility before replacing an installed unit.

Availability is assessed for the exact 6ES7153-2AA02-0XB0 product version.
Verified resources for Siemens 6ES7153-2AA02-0XB0:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Builds modular PROFIBUS DP remote I/O stations with supported S7-300 signal and function modules.
  • Serves redundant process-automation architectures that require two interface paths to the distributed station.
  • Supports time-stamped event acquisition when the controller, configuration and I/O modules provide the required functions.
  • Operates with the ET 200M backplane arrangement and the documented selection of S7-300 I/O modules.
  • The PROFIBUS DP master must recognize the exact interface-module revision used in the configured station.
  • Redundant operation depends on matching bus modules, connectors and system configuration on both communication paths.
  • Station and module diagnostics are returned to the DP master for maintenance evaluation.
  • Channel-level diagnostic detail depends on the capabilities and parameterization of the installed I/O module.
  • Bus faults, configuration mismatches and removed modules should be resolved before the station is released to operation.
  • Hardware configuration data must correspond to product version 07 and the approved project software catalog.
  • Stored station parameters should be archived before exchanging the interface module or changing the station design.
  • Migration to the later 6ES7153-2BA10-0XB0 reference requires an engineering review of supported functions and redundancy behavior.
Description
Serving as the PROFIBUS DP station head, Siemens 6ES7153-2AA02-0XB0 connects an ET 200M assembly containing as many as eight S7-300 signal or function modules. The interface accepts 24 V DC and transfers station data through the S7-300 backplane bus.

Redundant operating modes and time-stamped event acquisition make this IM153-2 version suitable for process installations that require a recoverable distributed I/O path. Its diagnostic functions report station, module and channel conditions to the configured DP master.

Hardware revision and station engineering are decisive when replacing the module. Product version 07, AKF behavior, the selected bus module and the master fail-safe setting must be checked against the existing project before the documented successor is considered.
Alternative Names
6ES7153-2AA02-0XB0 6ES71532AA020XB0 6ES7 153-2AA02-0XB0 6ES7 153 2AA02 0XB0 Siemens 6ES7153-2AA02-0XB0 SIMATIC 6ES7153-2AA02-0XB0 IM153-2 6ES7153-2AA02-0XB0 ET 200M 6ES7153-2AA02-0XB0
Technical notes
Siemens 6ES7153-2AA02-0XB0 must be matched by full MLFB and hardware version. Redundancy, AKF configuration and module-change behavior depend on the installed revision and bus-module arrangement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What changed with product version 07 of Siemens 6ES7153-2AA02-0XB0?
Version 07 adds support for configuration in operation without an active DPV1 mode. The configured project and operating procedure must still match the module revision.
How should the DP master be configured for redundant Siemens 6ES7153-2AA02-0XB0 stations?
Siemens redundancy guidance requires the relevant fail-safe response to be enabled on the DP master so an interface changeover does not produce uncontrolled output behavior.
Which bus module is identified for software redundancy with Siemens 6ES7153-2AA02-0XB0?
The Siemens software-redundancy manual specifies two IM153-2 interfaces with bus module 6ES7195-7HD00-0XA0 for the documented ET 200M arrangement.
Why does AKF engineering require extra care on Siemens 6ES7153-2AA02-0XB0?
The operating instructions warn that the configuration comparison for this function has a low quality level. Validate the actual and configured station arrangement before enabling it.
What does the lifecycle status of Siemens 6ES7153-2AA02-0XB0 mean for replacement planning?
Siemens lists this MLFB at end of product lifecycle and names 6ES7153-2BA10-0XB0 as successor. Confirm project, bus-module and revision compatibility before substitution.
Which station details are needed to source Siemens 6ES7153-2AA02-0XB0?
Provide the complete MLFB, hardware version, existing bus module, redundancy topology, DP-master type and a label image so the requested station-head configuration can be matched.
