        Siemens 6ES7307-1BA01-0AA0
        Siemens 6ES7307-1BA01-0AA0
        Siemens 6ES7307-1BA01-0AA0
        Siemens 6ES7307-1BA01-0AA0
        Siemens 6ES7307-1BA01-0AA0
        Siemens 6ES7307-1BA01-0AA0
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Discontinued / Obsolete by OEM
          Apter Power supports 6ES7307-1BA01-0AA0 identification, documentation review and quotation.

        6ES7307-1BA01-0AA0

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

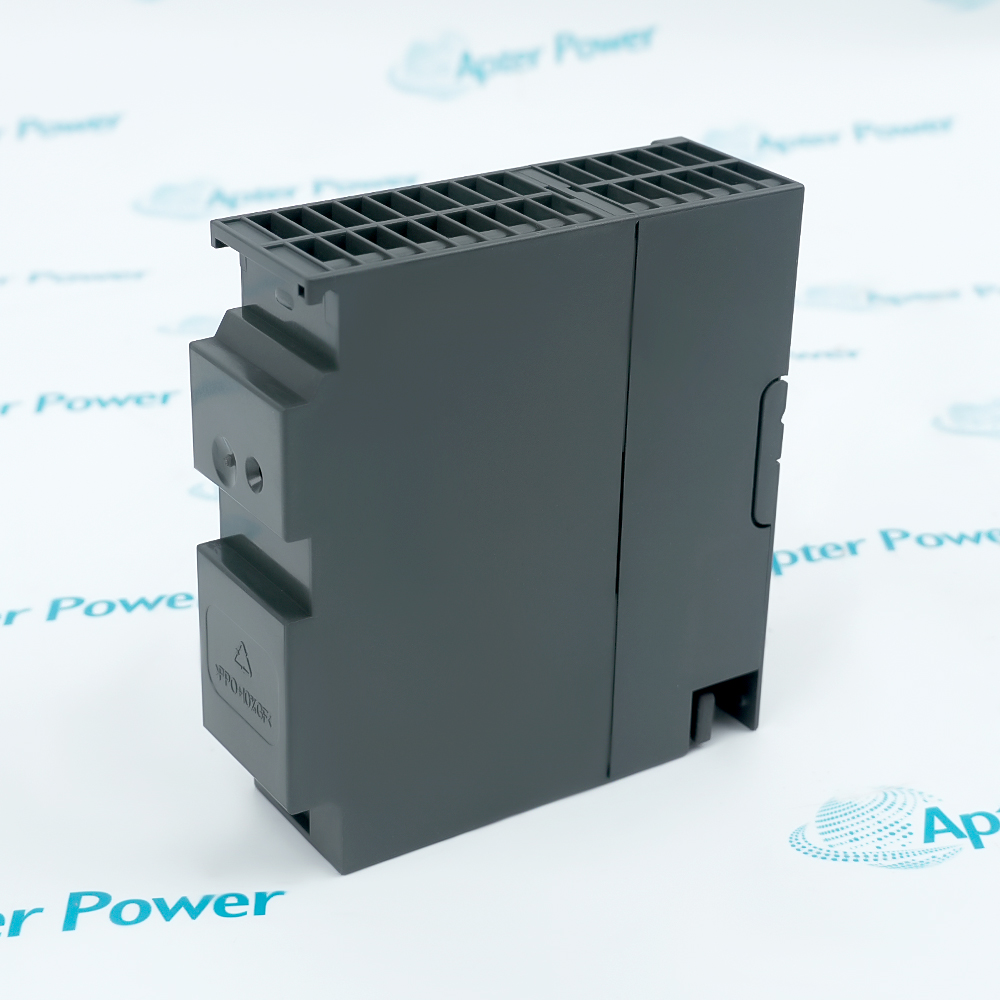

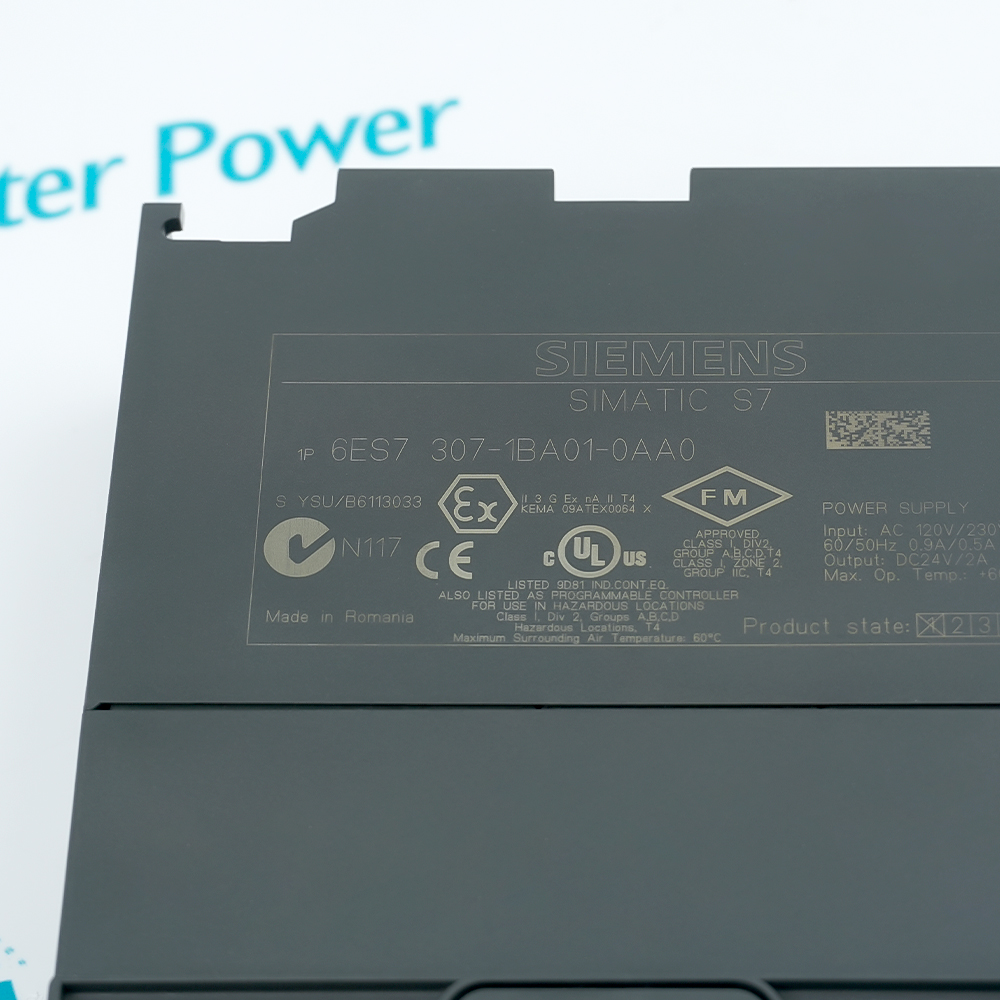

        Siemens 6ES7307-1BA01-0AA0 is a PS 307 single-phase power supply for 120/230 V AC input and 24 V DC, 2 A output. It provides the control voltage used by S7-300 and ET 200M cabinet assemblies.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for 6ES7307-1BA01-0AA0
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 6ES7307-1BA01-0AA0

        • Manufacturer:
          Siemens
        • Part Number:
          6ES7307-1BA01-0AA0
        • Product Family:
          Siemens Simatic S7-300
        • Product Type:
          AC Power Supply Module
        • Stock:
          1
        • Rated input voltage:
          120/230 V AC
        • Permissible input range:
          85 to 132 V AC; 170 to 264 V AC
        • Line frequency:
          47 to 63 Hz
        • Rated output voltage:
          24 V DC
        • Rated output current:
          2 A
        • Rated output power:
          48 W
        • Efficiency:
          Approximately 84%
        • Short-circuit behavior:
          Electronic current limitation with automatic restart
        • Degree of protection:
          IP20
        • Operating temperature:
          0 to 60 °C
        • Input network type:
          Single-phase AC
        • Input range selection:
          Automatic 120/230 V AC range selection
        • Overvoltage overload capability:
          2.3 × rated input voltage for 1.3 ms
        • Power-failure buffering time:
          Minimum 20 ms at 93/187 V input
        • Input current at 120 V:
          0.9 A
        • Input current at 230 V:
          0.5 A
        • Maximum inrush current at 25 °C:
          22 A
        • Maximum inrush-limiting duration:
          3 ms
        • Maximum I²t value:
          1 A²·s
        • Internal fuse:
          T 1.6 A / 250 V; not accessible
        • Recommended feeder protection:
          3 A miniature circuit breaker, characteristic C
        • Output voltage characteristic:
          Controlled and electrically isolated DC
        • Output-voltage tolerance:
          3%
        • Input-voltage load regulation:
          0.1% for slow input-voltage fluctuation
        • Resistive-load regulation:
          0.2% for slow load fluctuation
        • Maximum residual ripple:
          50 mV
        • Typical residual ripple:
          5 mV
        • Maximum output voltage peak:
          150 mV
        • Normal-operation indication:
          Green LED for 24 V OK
        • Startup behavior:
          Soft start without output overshoot
        • Maximum response delay:
          2 s
        • Typical output rise time:
          10 ms
        • Short-term overload current:
          Approximately 9 A
        • Overload duration:
          90 ms during startup or operation
        • Parallel operation:
          Up to 2 units for increased power
        • Typical power loss at rated output:
          9 W
        • Load-step settling time:
          Typically 0.5 ms; 1 ms maximum
        • Overvoltage protection:
          Shutdown below 28.8 V with automatic restart
        • Current-limiting response:
          2.2 to 2.6 A
        • Maximum leakage current:
          3.5 mA
        • Emission standard:
          EN 55022 Class B
        • Immunity standard:
          EN 61000-6-2
        • MTBF at 40 °C:
          2,320,078 h
        • Hazardous-area approvals:
          IECEx, ATEX, UL hazardous location, UKEX, CCC-Ex and FM
        • Transport and storage temperature:
          -40 to +85 °C
        • Environmental category:
          IEC 60721 climate class 3K3; 5 to 95% RH, non-condensing
        • Terminal conductor range:
          0.5 to 2.5 mm², solid or finely stranded
        • Mounting method:
          SIMATIC S7 mounting rail
        • Required vertical clearance:
          40 mm above and below
        • Weight:
          0.661 lbs (0.3 kg)
        • Estimated shipping dimensions:
          17 x 13 x 5 cm
        • Tariff Code:
          Please confirm the destination before shipping.
        • Country of origin:
          Romania
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Applications Safety Performance Installation & Integration

        Features:

        • Operates from either 120 V or 230 V single-phase AC mains.
        • Supplies 24 V DC at 2 A for modular automation loads.
        • Fits the 40 mm S7-300 mechanical format with IP20 enclosure protection.
        This configuration is the compact 2 A member of the PS 307 AC-input family.

        It converts site mains into the regulated control voltage used throughout an S7-300 or ET 200M panel.

        Voltage selection, earthing and feeder protection must be completed before any output loads are connected.

        Apter Power can review sourcing, documentation and system matching for 6ES7307-1BA01-0AA0.
        Verified resources for Siemens 6ES7307-1BA01-0AA0: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Machine control cabinets can power the CPU, I/O and 24 V auxiliaries from the local AC feeder.
        • ET 200M panels use the module when a compact integral control-power source is preferred.
        • Retrofit work can retain the S7-300 module width while restoring a failed 2 A AC-fed supply.
        • The input selector must match the applied 120 V or 230 V AC network.
        • Protective earthing and upstream overcurrent protection remain part of the cabinet design.
        • IP20 construction does not replace a finger-safe industrial enclosure.
        • The regulated output provides 24 V DC with a 2 A continuous rating.
        • The 48 W capacity must cover steady loads and permitted startup demand.
        • Approximately 84% efficiency supports thermal planning for the enclosure.
        • The housing occupies 40 mm on the S7-300 mounting arrangement.
        • Screw-terminal conductors should be sized and tightened for the documented currents.
        • A 125 by 120 mm module envelope must remain clear of wiring ducts and hot equipment.
        Description
        6ES7307-1BA01-0AA0 accepts selectable 120 or 230 V AC mains and produces a regulated 24 V DC output. The 2 A execution occupies a 40 mm-wide S7-300-format housing for compact cabinet integration.

        The supply feeds PLC electronics, remote I/O components and associated 24 V control loads from a single-phase source. Its regulated output and electronic short-circuit behavior help isolate downstream automation from normal mains variation.

        A correct replacement retains the input-voltage selection, protective conductor, feeder protection and output load budget. Clearance and ambient conditions must also suit the 84% efficient, naturally cooled module.
        Alternative Names
        6ES7307-1BA01-0AA0 Siemens 6ES7307-1BA01-0AA0 6ES7307 1BA01 0AA0 6ES73071BA010AA0 6ES7307-1BA01-0AA0 AC Power Supply Module Siemens SIMATIC PS 307 for S7-300 and ET 200M Siemens 6ES7307-1BA01-0AA0 AC Power Supply Module
        Technical notes
        Confirm the 120/230 V selector setting on 6ES7307-1BA01-0AA0 before applying mains; an incorrect setting can damage the supply.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Which mains systems can energize Siemens 6ES7307-1BA01-0AA0?
        It supports the documented 120 V and 230 V AC ranges at 47 to 63 Hz.
        How does Siemens 6ES7307-1BA01-0AA0 fit an S7-300 cabinet?
        The 40 mm module mounts in the S7-300-format assembly and provides the local 24 V control rail.
        Where is the 2 A output of Siemens 6ES7307-1BA01-0AA0 typically used?
        It serves CPUs, I/O and auxiliary control circuits whose combined demand stays within 48 W.
        What does phase-out mean when ordering Siemens 6ES7307-1BA01-0AA0?
        Procurement should identify the exact order code and assess spare availability for the existing station.
        Which commissioning error presents the greatest risk with Siemens 6ES7307-1BA01-0AA0?
        Applying mains with the input selector set for the wrong voltage is the critical mistake to avoid.
        Which panel details should be sent for Siemens 6ES7307-1BA01-0AA0 sourcing?
        Supply voltage, downstream 24 V load, ambient temperature, quantity and destination allow an accurate review.
