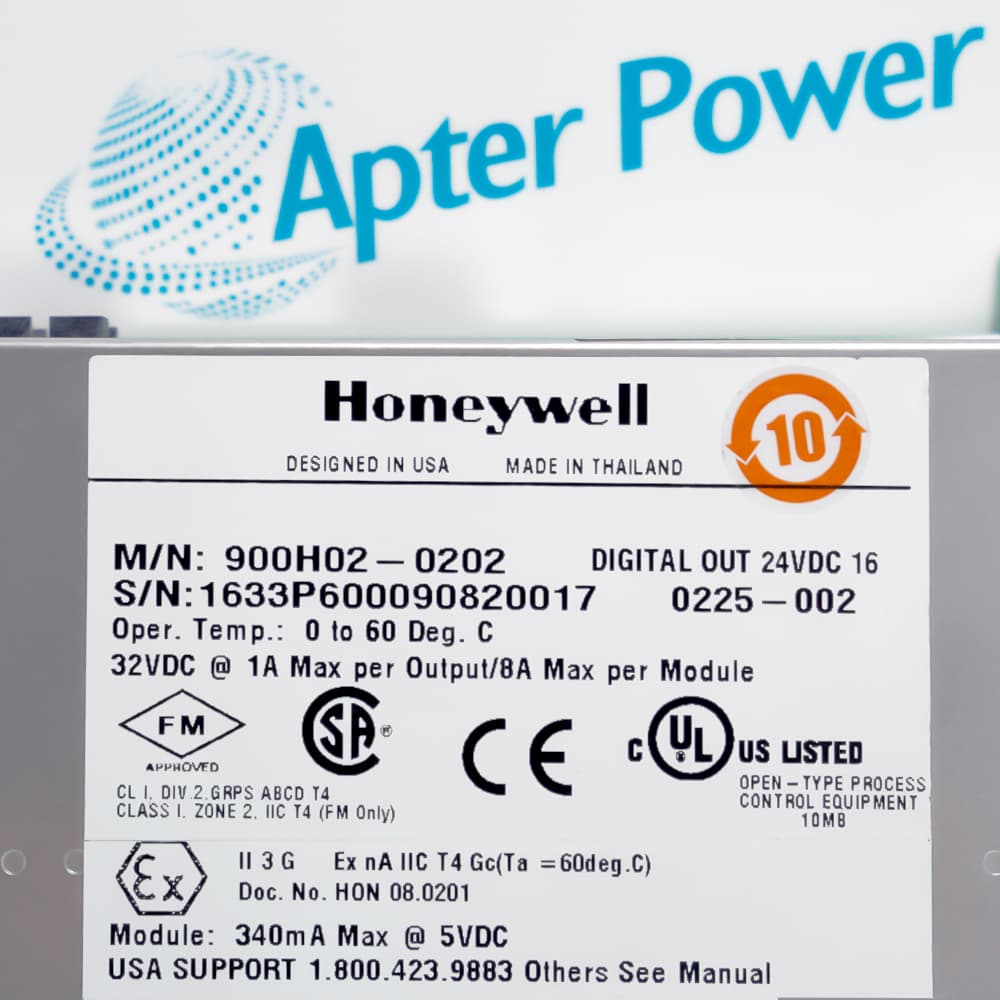

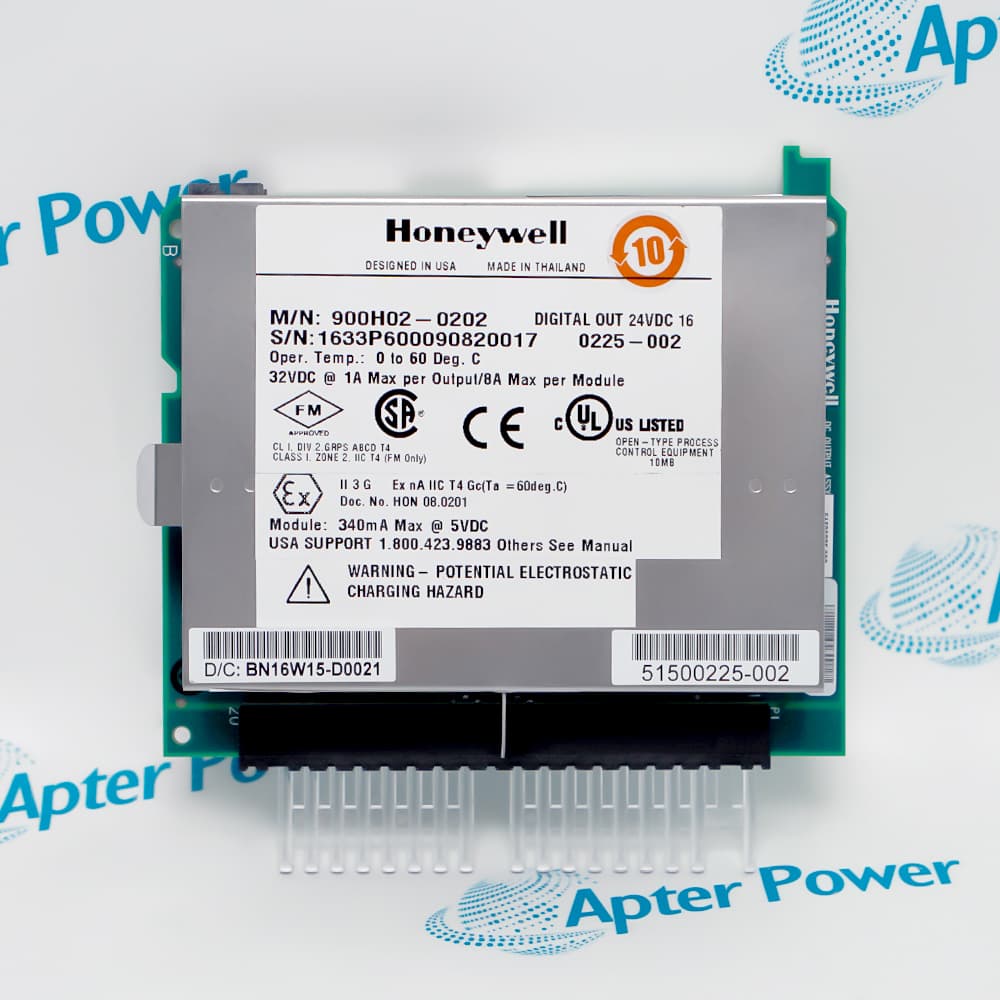

900H02-0202

/ 4.9
1001 reviews | Need a Specific Revision?
Two isolated field-power groups let 900H02-0202 switch protected sinking outputs for ControlEdge HC900 actuators while retaining channel and module diagnostics.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 900H02-0202
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 900H02-0202

  • Manufacturer:
    Honeywell
  • Part Number:
    900H02-0202
  • Product Family:
    Honeywell ControlEdge HC900
  • Product Type:
    16-Point DC Digital Output Module
  • Stock:
    1
  • Outputs:
    16 current-sinking low-side channels
  • Galvanic grouping:
    2 isolated groups of 8 outputs
  • Operating voltage:
    6.5...32 V DC
  • Maximum load:
    1 A per point; 8 A per module for resistive loads
  • Output response:
    6 ms off-to-on and on-to-off
  • Overload protection:
    Electronic high-current and high-temperature limiting
  • Power supply loading:
    5 V, 340 mA
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Output Wiring Overload Reset Load Diagnostics Product Applications

Features:

  • Sixteen sinking outputs: low-side switching for DC field loads
  • Two isolated groups: independent external supply pairs for eight channels each
  • Electronic protection: high-current and overtemperature limiting with LED diagnostics
900H02-0202 provides dense DC output control for the Honeywell ControlEdge HC900 platform.

Its two eight-channel groups allow separate field-power organization while keeping the complete module within the published aggregate current limit.

Useful commissioning evidence includes group voltages, load and inrush currents, terminal assignment, output forcing records, diagnostic state, and overload-reset results.

Availability of 900H02-0202 is subject to Apter Power inventory and sourcing confirmation.
Honeywell 900H02-0202 16-Point DC Digital Output Module Manuals, Datasheets, and Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Group supplies: document +V and COM for each set of eight channels.
  • Polarity: wire current-sinking loads from the correct positive source.
  • Aggregate current: total simultaneous loads and inrush across the module.
  • Terminal hardware: match the official HC900 block or RTP arrangement.
  • Diagnostics: identify the affected channel and group from module status.
  • Load: inspect short circuits, inrush, wiring, and temperature.
  • Correction: remove the fault before applying another command.
  • Reset: cycle field power as required by the electronic protection.
  • Channel LED: compare commanded state with measured terminal voltage and load current.
  • Module status: distinguish normal scanning, forced output, and diagnostic conditions.
  • Group demand: total steady and inrush current for each isolated eight-channel power domain.
  • Return to service: remove the fault, cycle field power when required, and verify the device response.
  • Solenoid control: switch compatible DC coils within current and inrush limits.
  • Indicator loads: operate approved lamps or annunciation circuits.
  • Interposing devices: drive documented relay or interface loads from HC900 logic.
  • Process skids: distribute 16 DC output commands in two field-power groups.
Description
Actuators that use externally powered DC circuits can be commanded through 900H02-0202 in a ControlEdge HC900 system. The output architecture divides the channels into two isolated groups so each group retains its own positive supply and common reference.

Electronic protection within 900H02-0202 responds to excessive current or temperature, while channel and module indicators help maintenance compare commanded state with the actual field circuit. Protection does not remove the need to qualify load inrush and group demand.

Before 900H02-0202 is exchanged, the complete suffix, terminal hardware and controller configuration should be matched to the installed rack. Both field-power groups, their commons and connected load types must be documented so a reset does not hide an unresolved wiring or thermal fault.
Alternative Names
Honeywell 900H02-0202 Honeywell HC900 900H02-0202 900H020202 900H02 0202 ControlEdge HC900 sixteen-point DC output HC900 current-sinking output module
Technical notes
Repeated overload reset is the central operating risk for 900H02-0202. Remove the command, locate the short circuit, inrush or thermal cause, and correct the field wiring before cycling group power; do not treat restored output indication as proof that the connected load fault is gone.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why can an output LED on 900H02-0202 be on while the connected actuator remains off?
Measure the applicable group supply, common and terminal voltage, then inspect the load circuit and protection status before changing the controller configuration.
What should be investigated when eight related channels on 900H02-0202 fail together?
Start with the isolated group supply, common, protection and terminal block shared by those channels rather than replacing individual outputs.
Why might overload protection on 900H02-0202 trip again immediately after field power is cycled?
A short circuit, excessive inrush, sustained load or thermal condition remains; remove the command and correct the cause before another reset.
How can a technician distinguish a load problem from a module problem on 900H02-0202?
Compare commanded state, channel and module diagnostics, terminal voltage and measured load current, then test the field circuit without bypassing protection.
What must match when 900H02-0202 is installed in an existing HC900 rack?
Confirm the complete suffix, rack and terminal hardware, controller configuration, group supplies, common arrangement and documented load types before reconnecting actuators.
When should commissioning of 900H02-0202 stop after a protection event?
Stop when the fault cause is unknown or the group demand and inrush have not been verified; repeated power cycling is not an acceptance test.
