    Apter Power supports 621-2200RC document review, configuration matching and quotation.

621-2200RC

/ 4.9
1001 reviews | Need a Specific Revision?

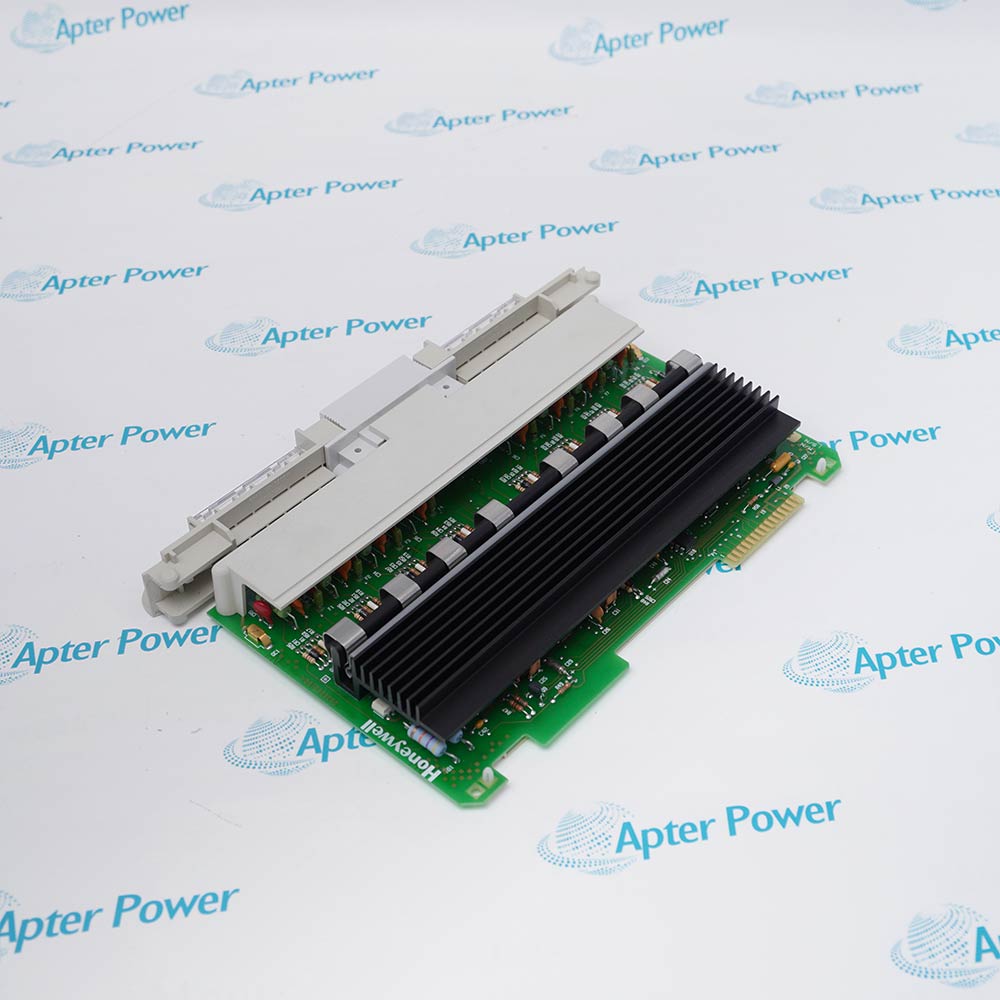

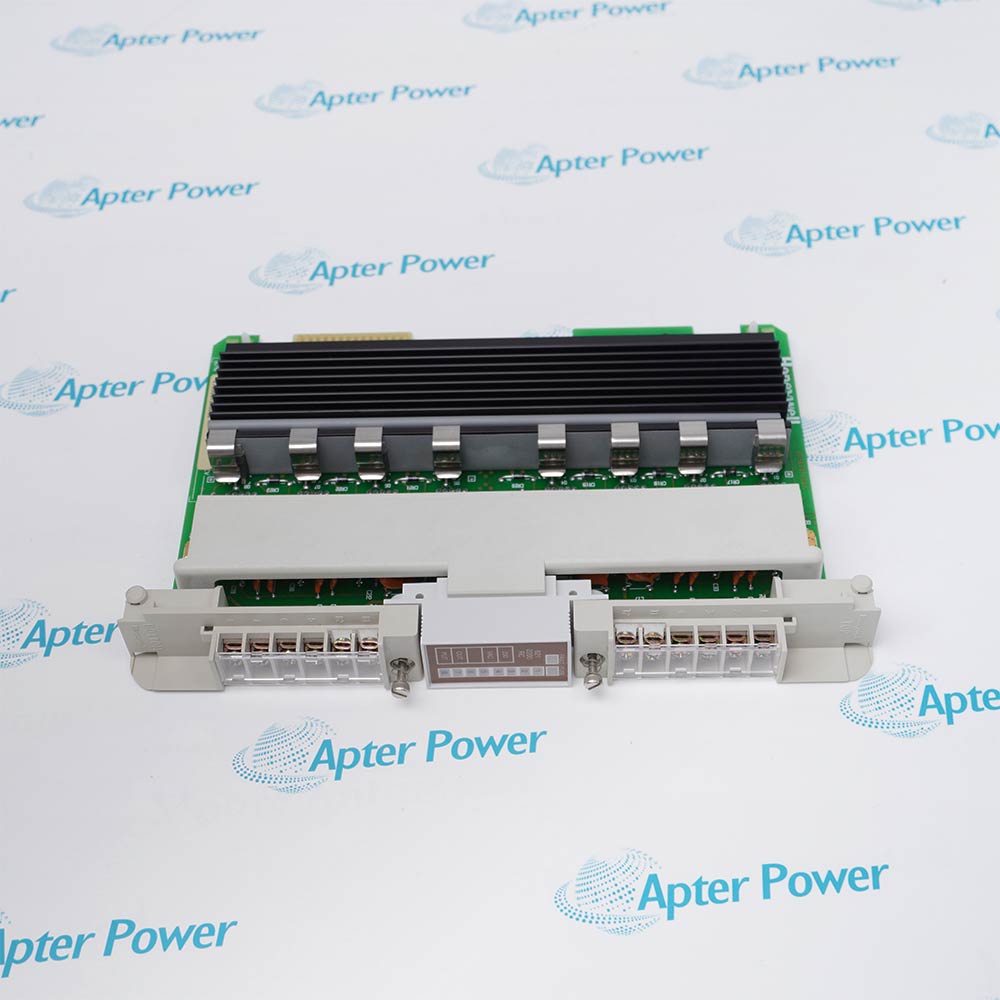

Honeywell 621-2200RC is a 230 V AC output module marked for 195–250 V AC loads. Its nameplate limits are 2 A per output, 6 A per common group and 8 A for the complete module.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 621-2200RC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 621-2200RC

  • Manufacturer:
    Honeywell
  • Part Number:
    621-2200RC
  • Product Family:
    Honeywell DCS
  • Product Type:
    230 V AC Output Module
  • Stock:
    1
  • Nameplate designation:
    OUTPUT MODULE 230VAC
  • Output voltage range:
    195 to 250 V AC
  • Individual output rating:
    2 A
  • Common-group rating:
    6 A per common
  • Module total rating:
    8 A per module
  • Approval marking:
    Factory Mutual approved
  • Listings:
    UL Listed and CSA certified industrial control equipment
  • Weight:
    1.455 lbs (0.66 kg)
  • Estimated shipping dimensions:
    2.9 x 18.3 x 26.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Control Protection Standards

Features:

  • The module nameplate identifies a 195–250 V AC output operating range.
  • Load limits are stated as 2 A per point, 6 A per common and 8 A across the module.
  • Factory Mutual, UL and CSA markings are visible on the supplied exact-model label.
The current item is the Honeywell 621 system 230 V AC output assembly identified by the RC suffix.

Controller commands operate grouped AC output paths that share common conductors within the current envelope.

Trace every common, verify load inrush and maintain branch protection before the original terminals are transferred.

Apter Power can support exact-model configuration review and quotation for Honeywell 621-2200RC.
Verified resources for Honeywell 621-2200RC: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Industrial control panels can command 230 V AC pilot devices within the point and common-group limits.
  • Contactor coils may be operated when their steady current and pull-in inrush are both compatible with the output design.
  • AC annunciators or indicators can share a common group after the worst-case simultaneous load is calculated.
  • The output module switches 230 V AC plant loads from a Honeywell 621 control-system rack position.
  • Contactors, indicators and other AC devices can be commanded when they remain within the 195 to 250 V operating band.
  • Its 230 V AC output designation identifies the correct high-voltage switching function for rack and wiring selection.
  • Rack keying, common wiring, load inrush and branch protection must be checked against the original nameplate before energizing.
  • Each output must operate only within the 195 to 250 V AC range specified for the connected plant loads.
  • Individual channels are rated at 2 A, while inrush and combined module loading remain subject to the overall limits.
  • UL listing confirms evaluation as industrial control equipment for the applications covered by the certification.
  • CSA certification applies to the marked output assembly when it is installed within its stated electrical ratings.
  • Factory Mutual approval and the 8 A total module rating must both be considered in the completed control system.
Description
621-2200RC switches mains-frequency AC loads from a Honeywell 621 control-system output position. Its nameplate identifies a 230 V AC output module and specifies a 195–250 V operating band, allowing the controller to command compatible contactors, indicators and other industrial control loads.

Load planning must be performed at three levels: no point may exceed 2 A, a common group may carry no more than 6 A and the entire module is limited to 8 A. These simultaneous constraints mean that a set of individually acceptable loads can still overload a common conductor or the module total.

The photographed unit carries Factory Mutual approval together with UL and CSA industrial-control markings. Exact rack keying, common arrangement, branch protection, load inrush and terminal condition should be checked against the installed hardware because broader family data must not be assumed for this nameplate-only record.
Alternative Names
621-2200RC 621 2200RC 6212200RC Honeywell 621-2200RC Honeywell 621 2200RC 621-2200RC 230 V AC Output Module Honeywell 621-2200RC Honeywell 621 I/O 621-2200RC Catalog Number
Technical notes
For 621-2200RC, calculate steady and inrush current by individual point, common group and whole module; satisfying the 2 A channel rating alone does not protect the 6 A and 8 A limits.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which voltage band is printed on 621-2200RC?
The exact-model nameplate states an output range of 195–250 V AC.
How are current limits layered on 621-2200RC?
They are 2 A for one output, 6 A for each common group and 8 A for all outputs combined.
Why must inrush be considered for a 621-2200RC contactor load?
A coil can draw much more during pickup than at steady state, stressing the output or common even when its running current looks acceptable.
Which certification marks can be read on the 621-2200RC nameplate?
The photograph shows Factory Mutual approval plus UL Listed and CSA industrial-control markings.
What must be traced before moving 621-2200RC field wires?
Identify every output, common group, neutral path, branch protective device and the intended de-energized state.
How can the 621-2200RC nameplate limits be tied to the actual rack load plan?
Send the full label photograph, rack view, terminal wiring, load list, quantity, condition requirement and ship-to country.
