AI815 3BSE052604R1

/ 4.9
1001 reviews | Need a Specific Revision?

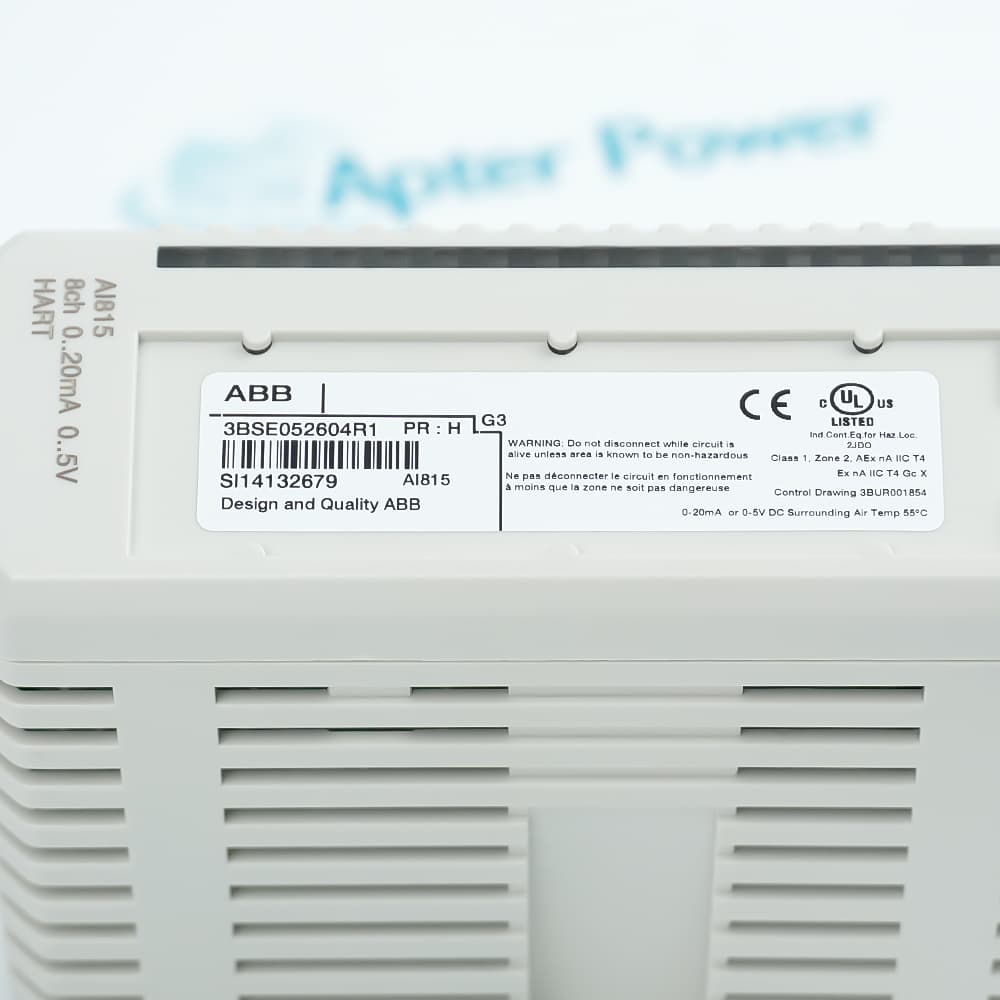

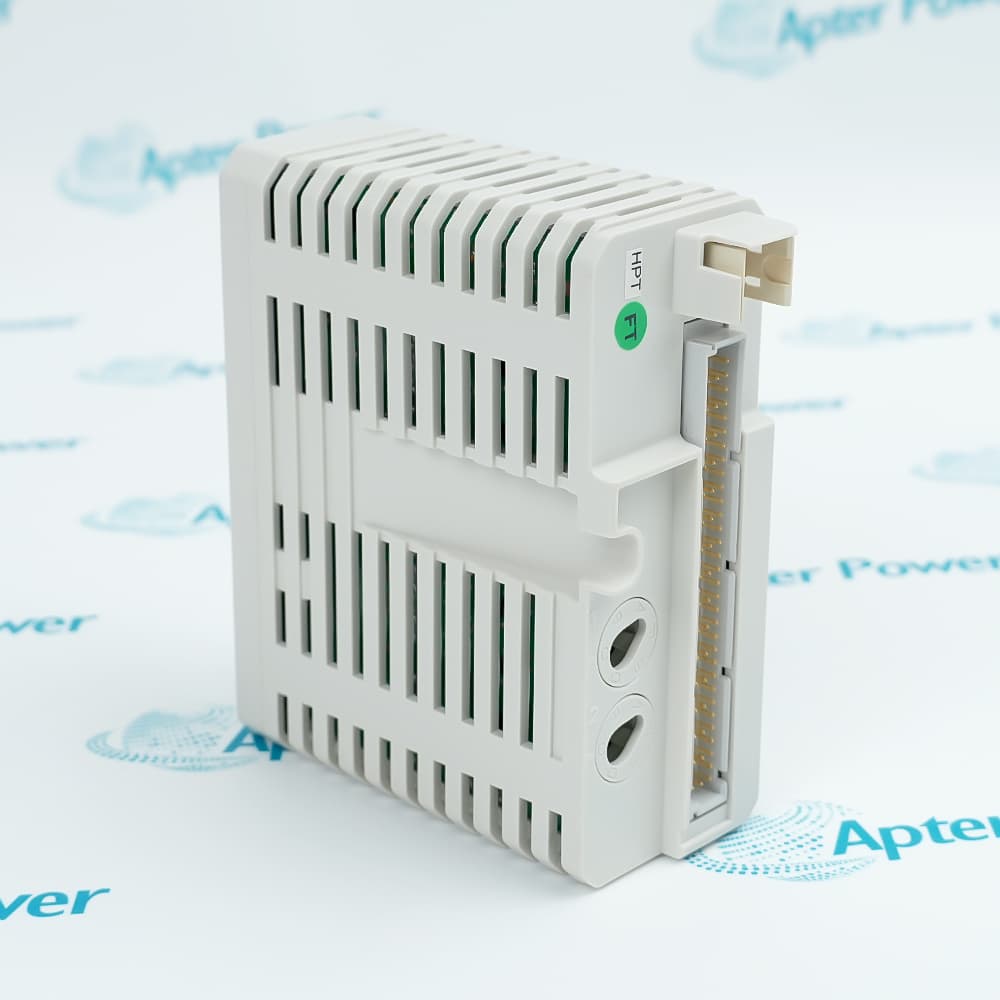

ABB AI815 3BSE052604R1 is an eight-channel S800 analog input module with HART pass-through and supervised transmitter power.
In Stock
Ships by Sunday, October 18
Fast Shipping Available
Get a quick price for AI815 3BSE052604R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AI815 3BSE052604R1

  • Manufacturer:
    ABB
  • Part Number:
    AI815 3BSE052604R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    S800 I/O HART Analog Input Module
  • Stock:
    1
  • Signal Specification:
    0-20 mA, 4-20 mA, 0-5 V, 1-5 V
  • Input Channels:
    8
  • Signal Type:
    Unipolar single ended
  • Resolution:
    12 bit
  • HART:
    Yes, pass-through
  • Isolation:
    Groupwise isolated from ground
  • Transmitter Power:
    Supervised and current limited
  • Compatible MTUs:
    TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838
  • Operating Temperature:
    0 to +55 C
  • Protection Rating:
    IP20
  • Weight:
    0.23 kg
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications HART Planning Power Review Commissioning

Features:

  • HART pass-through: The module supports HART communication for the documented current-input service.
  • Supervised transmitter power: External transmitter supply is distributed, supervised, and current limited.
  • Single module mode: ABB states that voltage and current signals cannot be mixed on one module.

This ordering configuration is distinguished from AI810 by HART pass-through, different voltage ranges, and integrated transmitter-power handling.

It connects field transmitters through eight single-ended channels while supervising the external power distributed to them.

Confirm the selected signal mode, HART power compatibility, transmitter wiring, terminal unit, and engineering database before purchase.

Availability is subject to Apter Power inventory and sourcing confirmation.

AI815 3BSE052604R1 Manuals, Datasheets, and Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

AI815 3BSE052604R1 S800 I/O HART Analog Input Module Specifications

General

  • ManufacturerABB
  • ModelAI815 3BSE052604R1
  • ConditionNew and factory sealed
  • Product FamilyABB S800 I/O

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Communication-path checks

  • Pass-through: Confirm the host system and engineering tools use HART pass-through.
  • Power supply: Use a HART-compatible external supply when transmitter power is external.
  • Loop devices: Record every connected transmitter and loop address.
  • Signal mode: Do not mix voltage and current channels on this module.

Transmitter-supply preparation

  • Two-wire loops: Check channel power distribution and return wiring.
  • Three-wire loops: Verify the separate supply and signal-return arrangement.
  • Supervision: Include field-power alarms in the commissioning check.
  • Current limit: Investigate overloads before restoring a channel.

HART loop validation

  • Range setup: Confirm one module-wide signal mode and all channel ranges.
  • Primary value: Compare the analog process value with the transmitter output.
  • HART access: Verify device communication through the approved host path.
  • Alarm check: Test field-power supervision and channel diagnostics.
Description
AI815 3BSE052604R1 is an ABB S800 I/O analog input module with eight single-ended channels for 0-20 mA, 4-20 mA, 0-5 V, or 1-5 V signals and HART pass-through communication.

AI815 3BSE052604R1 distributes supervised, current-limited external transmitter power to the channels. ABB states that current and voltage signals cannot be mixed on the same module.

Before installing AI815 3BSE052604R1, confirm the common channel mode, HART-compatible power supply, two- or three-wire transmitter wiring, MTU, and complete article number.
Alternative Names
AI815 3BSE052604R1 AI815-3BSE052604R1 AI 815 3BSE 052604 R1 AI8153BSE052604R1 ABB AI815 3BSE052604R1 Asea Brown Boveri AI815 ABB S800 I/O AI815 AI815 HART Analog Input Module
Technical notes
AI815 3BSE052604R1 combines eight current-or-voltage inputs with HART pass-through and supervised transmitter power. Confirm one signal mode and a HART-compatible supply.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
When is AI815 appropriate for a HART-enabled analog input loop?
Select it when the approved design requires the documented signal ranges, HART pass-through, and supervised transmitter-power distribution.
How should the common signal mode be reviewed before configuring AI815?
ABB states they cannot. Confirm one module mode and the existing channel configuration before replacement.
What HART and transmitter-power details should accompany an AI815 quotation?
Provide transmitter types, loop power method, host system, MTU, module nameplate, channel count in use, and required quantity.
What should be checked before connecting field transmitters to AI815?
Review polarity, HART-compatible supply, channel power distribution, current limit, return wiring, grounding, and the MTU terminal plan.
What should be checked if AI815 reports an analog value but no HART communication?
Check the host path, HART-compatible power supply, loop impedance, wiring, device address, engineering configuration, and field noise.
How should AI815 transmitter-power alarms be tested during commissioning?
Verify the external supply, enable the approved diagnostics, test the alarm path, and document the channel response.
What engineering review is needed before migrating another analog module to AI815?
Compare signal ranges, HART need, module-wide mode, transmitter power, MTU compatibility, channel mapping, software configuration, and approvals.
