    Apter Power supplies KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 for matching DeltaV M-series input positions.

KJ3001X1-BC1 12P0551X132 VE4001S3T1B1

/ 4.9
1001 reviews | Need a Specific Revision?

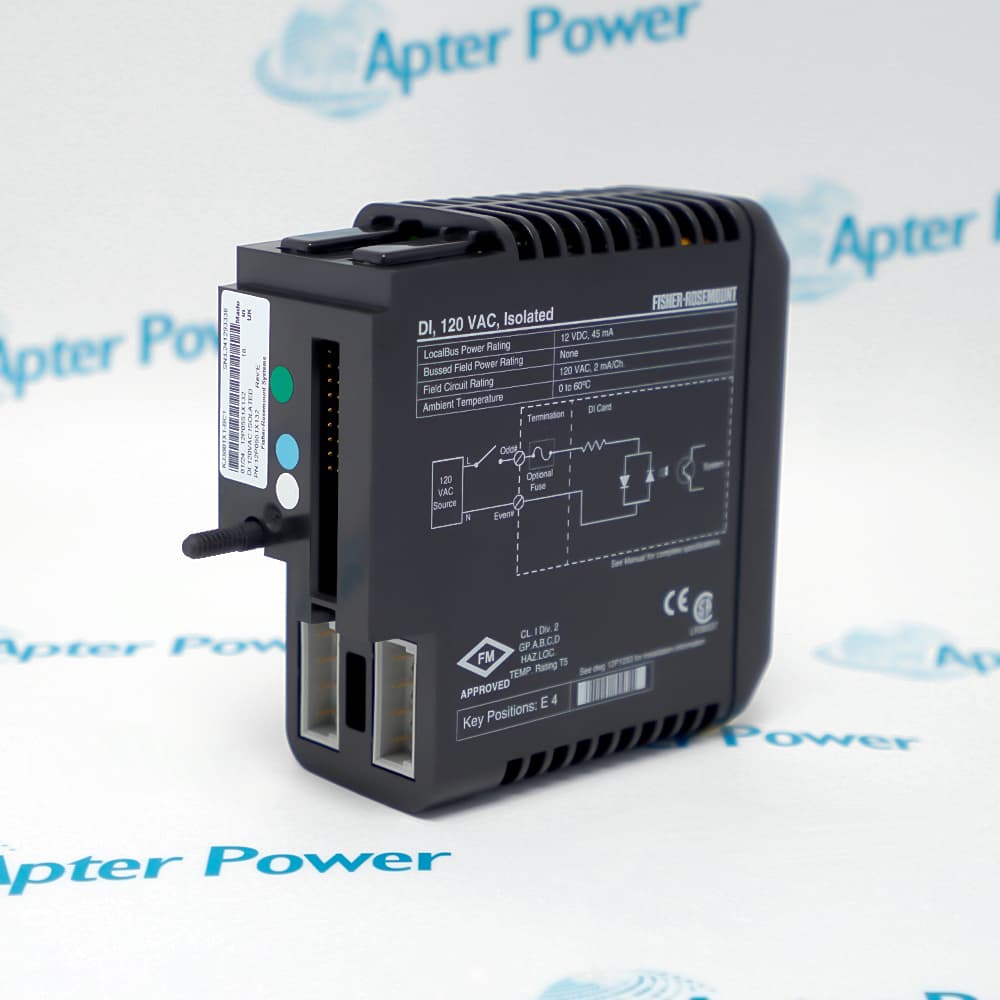

Emerson KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 is an isolated eight-channel 120 VAC discrete input card for DeltaV M-series I/O.
In Stock
Ships by Tuesday, September 29
Fast Shipping Available
Get a quick price for KJ3001X1-BC1 12P0551X132 VE4001S3T1B1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for KJ3001X1-BC1 12P0551X132 VE4001S3T1B1

  • Manufacturer:
    Emerson
  • Part Number:
    KJ3001X1-BC1 12P0551X132 VE4001S3T1B1
  • Product Family:
    DeltaV
  • Product Type:
    DeltaV 8-Channel 120 VAC Discrete Input Card
  • Stock:
    1
  • Field Signal:
    120 VAC
  • Channels:
    8
  • ON Threshold:
    84 to 130 VAC
  • OFF Threshold:
    0 to 34 VAC
  • Input Load:
    2 mA at 120 VAC
  • Isolation:
    250 VAC channel-to-system and channel-to-channel
  • Termination:
    Standard I/O termination block
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    United Kingdom
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Isolation State Detection M-Series Fit Applications

Features:

  • Eight isolated inputs: Each 120 VAC field state is kept electrically separate from neighboring channels and the system.
  • Clear state thresholds: Defined ON and OFF regions help diagnose marginal field voltage.
  • M-series integration: The card fits the established DeltaV carrier and standard I/O termination architecture.
KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 is the 120 VAC isolated discrete-input variant in DeltaV M-series traditional I/O.

Its role is to convert eight powered field conditions into controller-visible Boolean states while maintaining channel isolation.

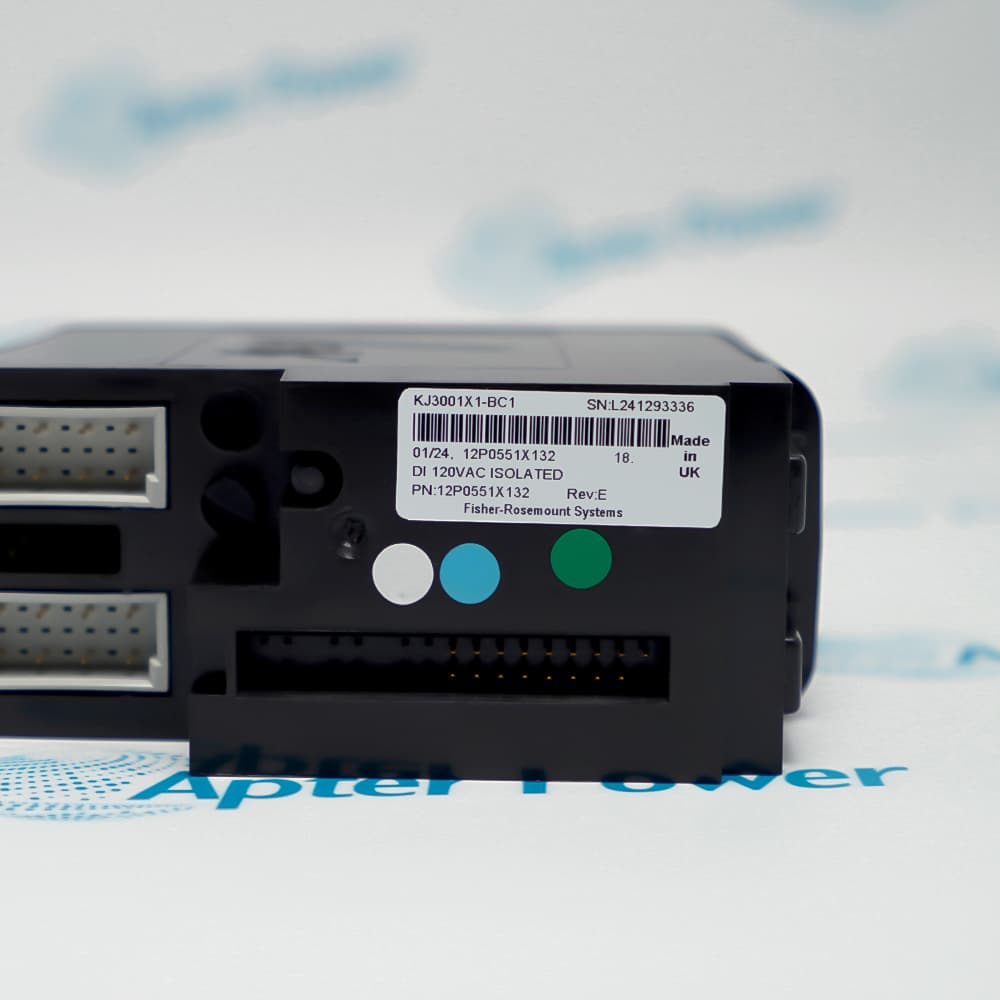

The full set of markings is retained because KJ, 12P and VE identifiers describe the same exact ordering and assembly identity.

Apter Power can help confirm Emerson KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 card identity, carrier and termination-block scope before quotation.
Emerson KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 DeltaV 8-Channel 120 VAC Discrete Input Card Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Independent channels: Each field input is isolated from the others.
  • System boundary: Field voltage remains separated from LocalBus electronics.
  • Fault localization: One channel problem can be investigated without assuming a shared field reference.
  • Verification method: Voltage is measured at the terminal while the corresponding DeltaV state is observed.
  • 120 VAC circuits: The card is intended for powered AC status signals.
  • ON region: A valid energized signal must reach the documented threshold.
  • OFF region: Residual voltage must stay below the OFF boundary.
  • Leakage awareness: Suppression devices or long cables can leave a misleading intermediate voltage.
  • Carrier interface: The card communicates through the DeltaV M-series LocalBus.
  • Standard termination: Field wiring lands on the matching standard I/O block.
  • Keyed replacement: Card and terminal identity are confirmed before seating.
  • Platform boundary: M-series horizontal I/O hardware is not treated as S-series carrier hardware.
  • M-series field I/O: Brings 120 VAC discrete states into a DeltaV M-series controller architecture.
  • Eight-point acquisition: Collects eight independent ON/OFF field conditions through one input card.
  • Isolated AC circuits: Separates each documented 120 VAC field state from neighboring channels and system electronics.
  • Standard-termination systems: Serves DeltaV installations engineered around the matching standard I/O termination block.
Description
KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 is a DeltaV M-series discrete input card that reads eight independent 120 VAC field states. Channel-to-channel and system isolation let each input report its condition without sharing the field potential of neighboring circuits.

KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 pairs with the standard I/O termination arrangement and DeltaV carriers. Its eight-channel boundary suits relay contacts, limit switches and other powered status circuits where technicians must distinguish an open field loop from a failed card or missing AC supply.
Alternative Names
KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 KJ3001X1-BC1-12P0551X132-VE4001S3T1B1
Technical notes
KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 is a 120 VAC isolated input card and must not be substituted for a 24 VDC input module. The wrong voltage class can prevent valid state detection and expose the input circuit to an unsuitable source. Stop selection unless the measured field voltage matches the 120 VAC design.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
A field device is active but KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 still reports OFF. Where should diagnosis begin?
Measure the AC signal at the assigned terminal while the device is active. If the expected field voltage is absent, trace the supply and contact path before replacing the input card.
One channel on KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 changes when an unrelated circuit energizes. What should be isolated?
Separate the two field circuits at the termination and trace cross-wiring or induced voltage. Channel isolation means the shared response should not be accepted as normal card behavior.
A contractor proposes joining field returns on KJ3001X1-BC1 12P0551X132 VE4001S3T1B1. Should engineering approve it?
Not from convenience alone. Preserve the documented channel-isolated wiring arrangement; an added common can change the electrical separation expected by the input design.
Can KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 be moved to an S-series horizontal carrier during an upgrade?
Do not assume so. Emerson distinguishes M-series I/O carrier hardware from S-series horizontal controller carriers, so the upgrade requires a platform-specific migration design.
An offered KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 has different 12P or VE markings on its label. Should procurement release it?
Hold the order until all identifiers are reconciled with the approved configuration. A partial label match does not establish the same card and termination combination.
How should KJ3001X1-BC1 12P0551X132 VE4001S3T1B1 be accepted after replacement?
Operate or inject every field input and confirm the correct DeltaV indication. Stop if any channel responds to the wrong circuit or remains in an intermediate state.
