IC200CPUE05

/ 4.9
1001 reviews | Need a Specific Revision?

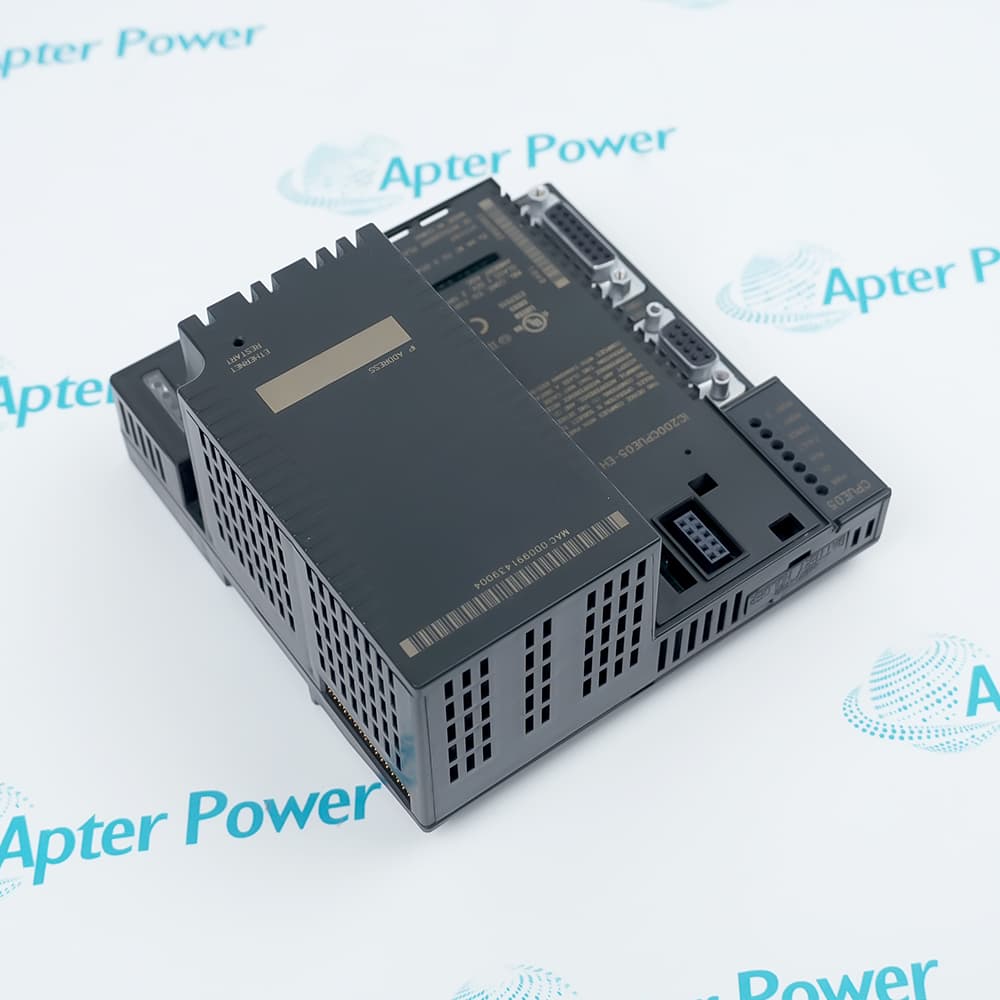

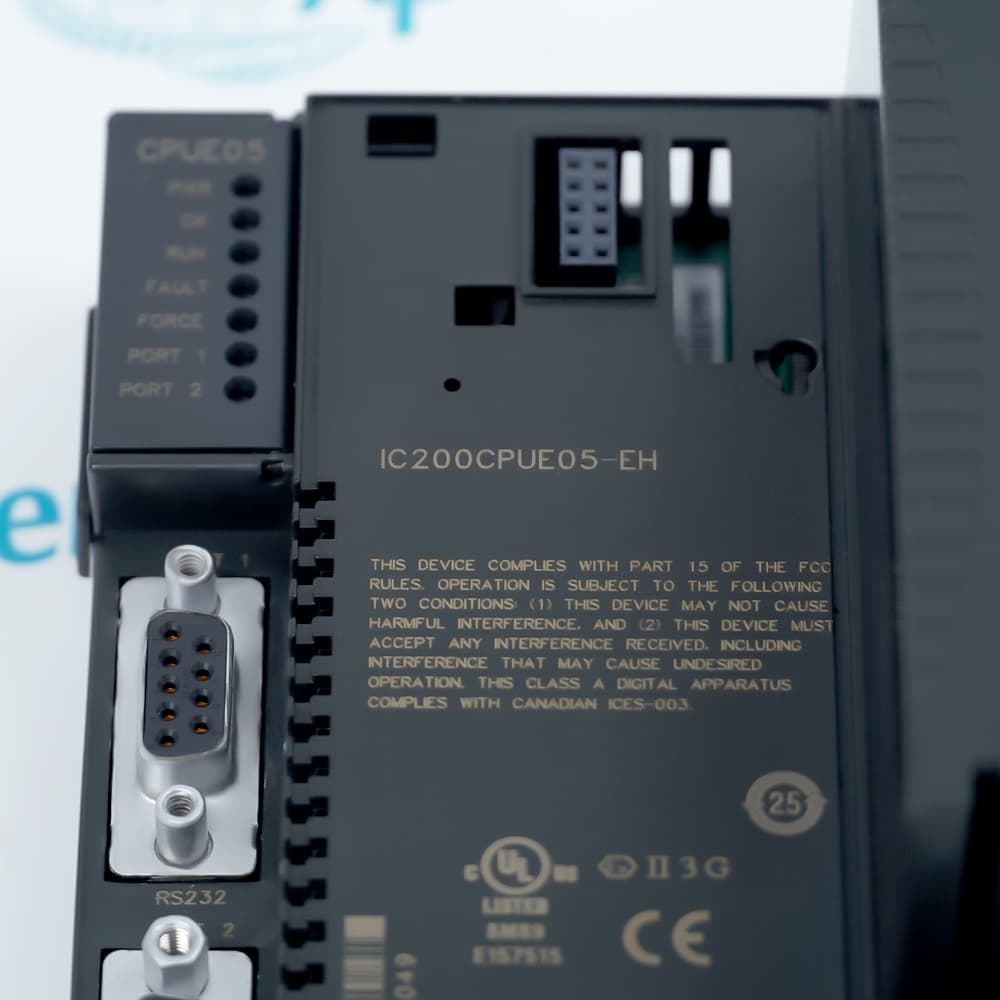

General Electric IC200CPUE05 is a VersaMax CPU with embedded Ethernet, RS-232, and RS-485 communications and up to 128 KB of configurable memory.
In Stock
Ships by Wednesday, September 30
Fast Shipping Available
Get a quick price for IC200CPUE05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC200CPUE05

  • Manufacturer:
    General Electric
  • Part Number:
    IC200CPUE05
  • Product Family:
    GE VersaMax
  • Product Type:
    VersaMax CPU with Embedded Ethernet Interface
  • Stock:
    1
  • Dimensions:
    12.6 × 12.8 × 6.91 cm
  • Program storage:
    System flash and battery-backed RAM
  • Configurable memory:
    128 KB maximum
  • Floating-point support:
    Yes
  • Typical Boolean execution speed:
    0.8 ms/K
  • Power consumption without serial converter:
    220 mA at 5 V DC; 570 mA at 3.3 V DC
  • Power consumption with serial converter/EZ Program Store:
    320 mA at 5 V DC
  • Embedded communications:
    RS-232, RS-485, and Ethernet
  • Ethernet data rate:
    10 Mbps, half- or full-duplex
  • Ethernet port:
    RJ-45 UTP
  • SRTP server connections:
    8
  • EGD configuration-based exchanges:
    32
  • EGD exchange limits:
    100 data ranges and 1400 bytes per exchange
  • EGD time synchronization:
    Not supported
  • EGD selective consumption:
    Supported
  • Time-of-day clock accuracy:
    23 ppm at 30 °C; 100 ppm over the full temperature range
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Communications EGD Memory Application
  • Embedded Ethernet, RS-232, and RS-485 ports support controller and station communications
  • Up to 128 KB of configurable user memory supports VersaMax control programs
  • Thirty-two configuration-based Ethernet Global Data exchanges support distributed data transfer

IC200CPUE05 is a General Electric VersaMax CPU designed for modular machine and light process control with embedded Ethernet communications.

The controller combines serial ports, a 10 Mbps Ethernet interface, floating-point execution, flash and battery-backed storage, and configurable EGD exchanges.

Before installation or replacement, verify the complete hardware revision, compatible power supply, CPU and Ethernet firmware, program memory, serial wiring, network settings, I/O expansion, and saved application.

Availability, condition, price, and shipping time for IC200CPUE05 are confirmed during quotation.

General Electric IC200CPUE05 VersaMax CPU with Embedded Ethernet Interface Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Embedded communication interfaces include RS-232, RS-485, and Ethernet
  • The RJ-45 UTP Ethernet port operates at 10 Mbps in half- or full-duplex mode
  • Local Station Manager uses CPU Port 1, while Remote Station Manager is available over UDP
  • The Ethernet interface supports 32 configuration-based EGD exchanges
  • Each EGD exchange supports up to 100 data ranges and 1400 bytes
  • EGD selective consumption is supported, while EGD time synchronization is not supported
  • Program storage uses system flash and battery-backed RAM
  • Configurable user memory is documented at 128 KB maximum in the current IPI
  • The processor supports floating-point operation and 0.8 ms/K typical Boolean execution
  • Machine control using modular VersaMax I/O and embedded communications
  • Light process control with distributed Ethernet and serial data exchange
  • General automation systems requiring a compact modular PLC controller
Description
IC200CPUE05 is a General Electric VersaMax CPU with embedded Ethernet for modular automation systems.

The unit provides RS-232, RS-485, and 10 Mbps Ethernet communications, up to 128 KB of configurable memory, floating-point support, and configuration-based EGD exchanges.

Before installation or replacement, confirm the complete catalog number, hardware revision, power supply, firmware, expansion I/O, serial and Ethernet settings, memory allocation, and saved configuration.
Revisions

Revision Part #

Also known as

IC200CPUE05MY
IC200CPUE05-MY, Series MY, Rev MY
Alternative Names
IC200CPUE05 IC200 CPUE05 IC200 CPUE 05 GE IC200CPUE05 General Electric IC200CPUE05 GE Fanuc IC200CPUE05 VersaMax IC200CPUE05 IC200CPUE05-MX IC200CPUE05MX
Technical notes
IC200CPUE05 requires the exact hardware revision, compatible PWRx02 supply, CPU and Ethernet firmware, memory allocation, network parameters, expansion-I/O revisions, and saved VersaMax project to be verified before commissioning.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What RS-232 cable-length limits apply to General Electric IC200CPUE05 Port 1?
The maximum length is 15 m (50 ft) at 19.2 kbaud or below, 7.5 m (25 ft) at 38.4 kbaud, 5 m (16 ft) at 57.6 kbaud, and 2.5 m (8 ft) at 115.2 kbaud.
Which programming software supports General Electric IC200CPUE05?
IC200CPUE05 is supported by VersaPro version 2.0 or later and by Machine Edition Logic Developer.
Which analog-module revisions are required in General Electric IC200CPUE05 expansion racks?
ALG320, ALG321, ALG322, and ALG432 require Revision B or later. ALG430 and ALG431 require Revision C or later.
Which port supports an EZ Program Store device on General Electric IC200CPUE05?
The EZ Program Store device uses Port 2 for read, write, verify, and update operations. The CPU must be placed in Stop/No I/O mode, and Port 1 does not support the device.
Does General Electric IC200CPUE05 support EGD time synchronization?
No. The current IPI states that EGD time synchronization is not supported, although EGD selective consumption and loading the EGD configuration back to the programmer are supported.
Which revision and firmware are documented for General Electric IC200CPUE05?
The June 2025 IPI identifies IC200CPUE05-MY with CPU firmware 3.10 and Ethernet firmware 3.40. Confirm the actual label and firmware before replacement.
What information should accompany an inquiry for General Electric IC200CPUE05?
Provide the complete base model and label revision, CPU and Ethernet firmware, power-supply model, expansion-I/O list, serial and Ethernet requirements, program backup status, quantity, and clear label photographs.
