        ICS-Triplex,T9451
        ICS-Triplex,T9451
        ICS-Triplex,T9451
        ICS-Triplex,T9451
        ICS-Triplex,T9451
        ICS-Triplex,T9451
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail info@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power supplies verified ICS Triplex safety modules to maintain robust fault-tolerant control, protect critical process loops, and ensure continuous plant safety.

        T9451

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

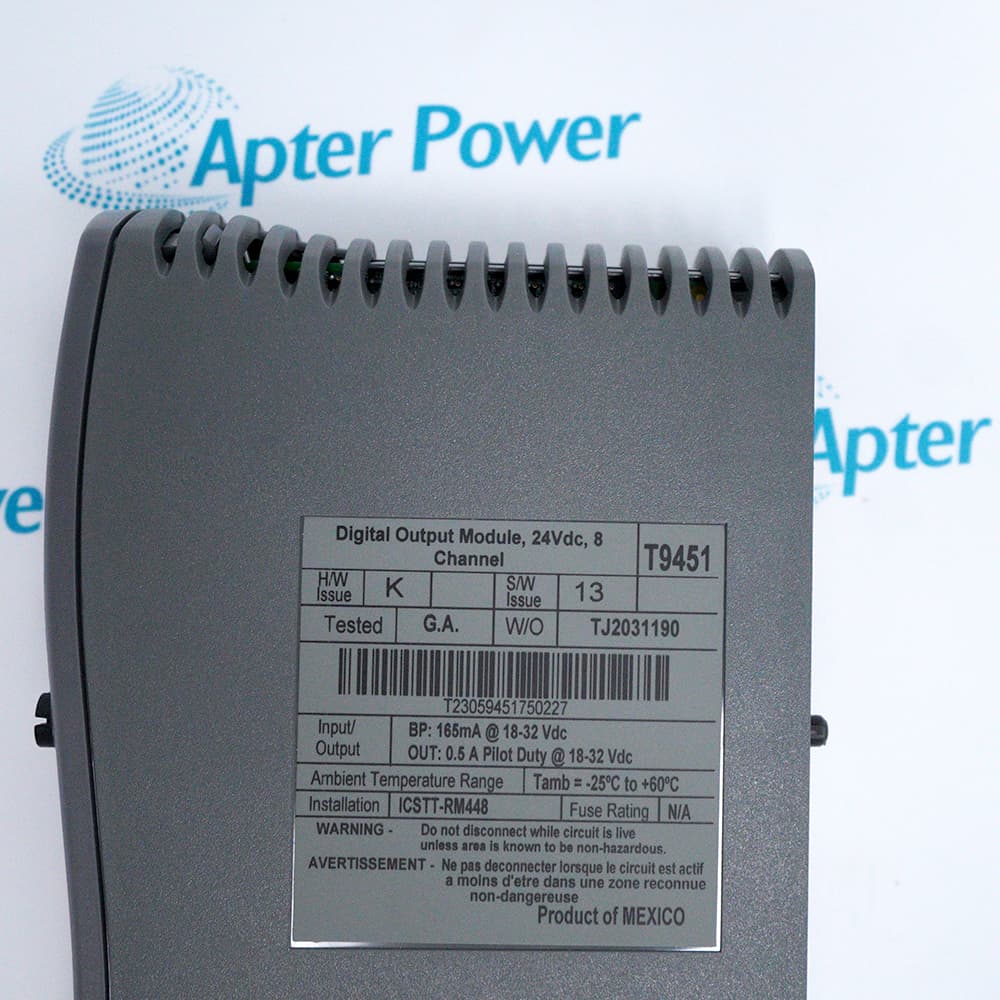

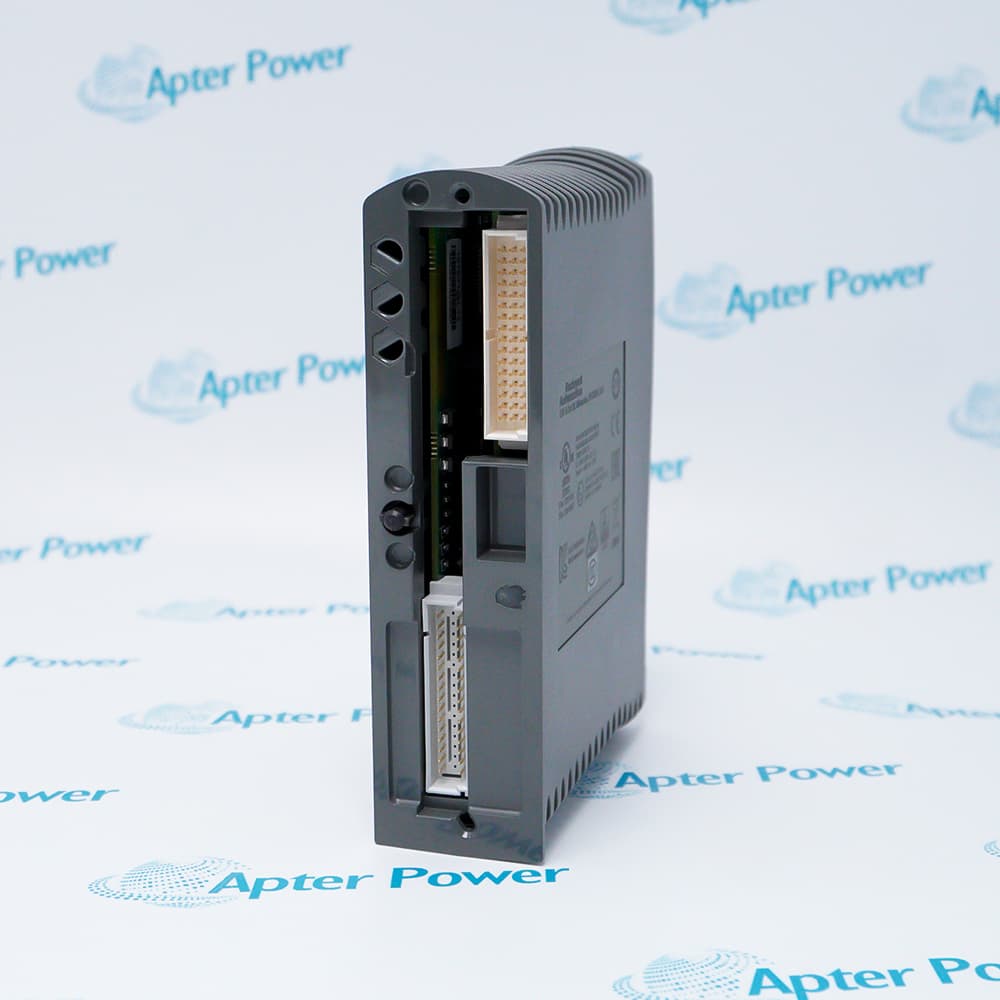

        The ICS Triplex T9451 Digital Output Module is an 8-channel industrial output solution designed for switching field devices with high reliability and built-in protection functions. It operates at 24 V DC and supports fault-tolerant control with advanced diagnostics and channel-level monitoring.
        Get a quick price for T9451
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for T9451

        • Manufacturer:
          ICS Triplex
        • Part Number:
          T9451
        • Product Family:
          AADvance Controller
        • Product Type:
          Digital Output Module
        • Voltage Range (Vdc):
          18-32
        • Maximum Current (mA):
          165
        • Input/Output Electrical Ratings:
          Output: 18-32 Vdc @ 0.5 A, Pilot duty 16 VA, 1.5 A Inrush
        • Power Consumption:
          3.0 W
        • Module Power Heat Dissipation:
          3.0 W (10.2 BTU/hr.)
        • Output Voltage:
          24 V DC
        • Output channels:
          8 channels
        • Casing:
          Plastic, non flammable
        • Continuous:
          1.5 A
        • Output off resistance (effective leakage):
          50 KΩ
        • Weight:
          0.36 kg
        • Estimated shipping dimensions:
          4.2x12x16.5cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Protection Updates Application Scenarios

        Features:

        • 8 output channels supporting switching up to 1 A at 32 V DC with structured field device control.
        • Integrated channel-level protection including reverse current, short circuit, and open circuit monitoring for stable operation.
        • Built-in voltage and load current monitoring combined with fault-tolerant design to ensure safe switching behavior.
        The T9451 Digital Output Module is designed to provide reliable switching control for industrial automation systems requiring multiple field device outputs. It supports 8 channels, each capable of handling defined electrical loads under controlled conditions. With integrated monitoring functions, the T9451 Digital Output Module ensures that output signals remain stable during operation. This makes it suitable for environments where consistent control output is essential.

        In industrial applications, the T9451 Digital Output Module plays a key role in managing field actuators and electrical devices through controlled switching signals. Its isolation design helps separate control logic from field circuits, improving system stability. The T9451 Digital Output Module also supports redundant power configurations, enhancing integration flexibility in complex systems. These characteristics make it widely applicable in automated control architectures.

        From a system reliability perspective, the T9451 Digital Output Module continuously performs self-checking and diagnostic monitoring to verify output integrity. It can detect abnormal conditions such as open or short circuits and respond through built-in protection logic. The T9451 Digital Output Module ensures controlled shutdown behavior when required, improving operational safety. This contributes to stable performance in continuous industrial operations.

        The T9451 ICS Triplex Digital Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        ICS Triplex T9451 Digital Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        ICS Triplex T9451 Digital Output Module Specs

        General

        • Manufacturer ICS Triplex
        • Model T9451
        • Condition New Original ready stock
        • Product Family T9481,T9482,T9431
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Output Current Limiting: Built-in electronic fuse function automatically limits current when an external load short circuit occurs to prevent circuit overheating.
        • Continuous Load Monitoring: Even when the channel is closed, it can still detect load integrity with a small current, ensuring normal operation at critical moments.
        • Fault-Tolerant Architecture Design: Employs triple redundancy (TMR) logic drive, ensuring correct output even if a single internal component fails.
        • Configuration Locking Mechanism: Supports software parameter write protection to prevent unauthorized personnel from modifying output logic or forcing states during system operation.
        • Online Firmware Download: Supports firmware version upgrades without disassembling hardware, improving overall system compatibility.
        • Dynamic Logic Mapping: Output channel logic relationships can be flexibly defined via programming software to adapt to changes in process flow.
        • Offline Simulation Verification: Output actions can be simulated in an engineering environment before actual configuration download, reducing on-site debugging risks.
        • Automatic Parameter Synchronization: After replacing a module, the controller automatically downloads the original configuration to the module, achieving plug-and-play functionality.
        • Actuator Drive: Directly controls solenoid valves, relays, and contactors in the field to execute system safety commands.
        • Audible and Visual Alarm Control: Automatically triggers alarm bells and flashing alarms in the central control room or on-site when abnormal operating conditions are detected.
        • Emergency Pressure Relief Start: Drives the relief valve to open when pressure exceeds the limit, quickly reducing the internal pressure of process pipelines or containers.
        • System-Level Interlocking: Interacts with other control subsystems to achieve cross-device action synchronization and safety protection linkage.
        Description
        The ICS Triplex T9451 Digital Output Module provides 8 output channels capable of controlling up to 8 field devices, with each channel supporting switching at 1 A up to 32 V DC. The module operates within a voltage range of 18–32 V DC and supports continuous current up to 1.5 A, making the T9451 Digital Output Module suitable for a variety of industrial load conditions.

        Each channel of the T9451 Digital Output Module is designed with isolation and protection features, including reverse current protection, short circuit detection, and open circuit line monitoring. These functions ensure that the T9451 Digital Output Module can maintain controlled switching behavior even under abnormal field conditions. Compared to simpler 8-channel output modules in similar safety systems, the T9451 Digital Output Module provides enhanced diagnostic coverage and stronger fault detection capabilities.

        The T9451 Digital Output Module incorporates voltage and load current monitoring for each channel, ensuring that output performance remains within defined electrical limits. It also includes a protection mechanism that activates when load conditions exceed safe thresholds, helping maintain stable operation of the T9451 Digital Output Module in continuous industrial processes.

        Power characteristics of the T9451 Digital Output Module include a power consumption of 3.0 W and heat dissipation of 3.0 W (10.2 BTU/hr). The module is housed in a non-flammable plastic casing, providing basic structural protection for industrial panel installations. These design features support the operational stability of the T9451 Digital Output Module in control cabinets and automation systems.

        The T9451 Digital Output Module supports dual redundant power feeds for field devices without requiring external diodes, improving system integration flexibility. It is also capable of handling inrush current conditions up to defined limits while maintaining safe switching behavior. This makes the T9451 Digital Output Module suitable for systems requiring consistent output control and high availability.
        Alternative Names
        T9401/2 T9431/2 T9482 T9481 T9432 T9431 T9401 T9402
        Technical notes
        Digital output module T9451 provides 8 channels for up to 8 field elements, output 18–32 Vdc at 0.5 A with continuous current 1.5 A and 32 Vdc switching capability, pilot duty 16 VA, inrush 1.5 A, maximum current 165 mA, output voltage 24 V DC, power consumption 3.0 W, heat dissipation 3.0 W (10.2 BTU/hr), output off resistance 50 KΩ, isolated channels, 8 channel configuration, plastic non-flammable casing, with voltage and load current monitoring, reverse current protection, short and open circuit line monitoring, and dual redundant field power feed support.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Why does the T9451 Digital Output Module include channel monitoring?
        It includes voltage and load current monitoring to ensure each channel operates within safe electrical conditions in the T9451 Digital Output Module.
        How does the T9451 Digital Output Module support diagnostics?
        It performs self-checking, line monitoring, and internal diagnostic tests to verify correct operation of the T9451 Digital Output Module.
        What happens when load exceeds safe limits in the T9451 Digital Output Module?
        A built-in protection mechanism activates to protect the channel and maintain safe operation of the T9451 Digital Output Module.
        How is the T9451 Digital Output Module powered?
        It operates at 18–32 V DC and supports dual redundant power feeds for field devices in the T9451 Digital Output Module.
