IC694MDL240

/ 4.9
1001 reviews | Need a Specific Revision?

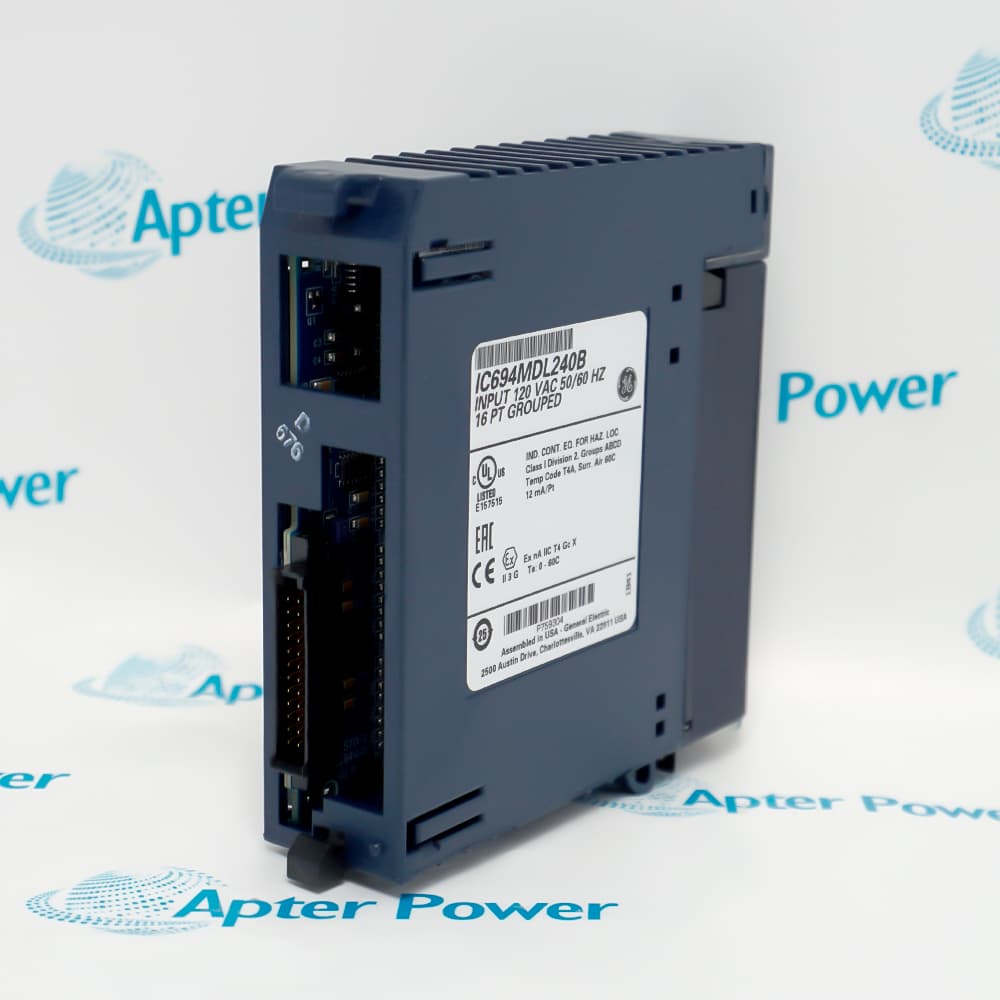

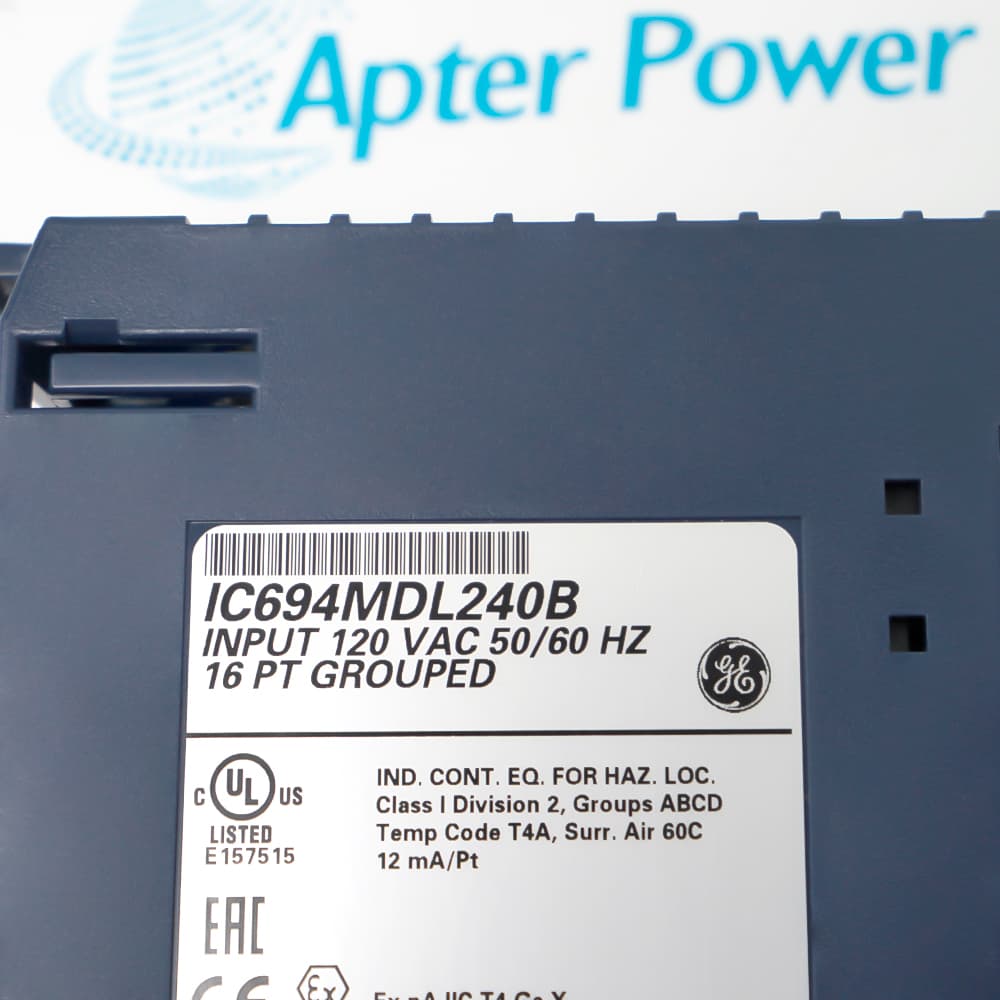

Sixteen 120 Vac field points enter a PACSystems RX3i rack through GE IC694MDL240, which uses one common group and optical isolation from the backplane.
In Stock
Ships by Saturday, October 17
Fast Shipping Available
Get a quick price for IC694MDL240
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC694MDL240

  • Manufacturer:
    General Electric
  • Part Number:
    IC694MDL240
  • Product Family:
    GE PACSystems RX3i
  • Product Type:
    PACSystems RX3i AC Input Module
  • Stock:
    1
  • Input points:
    16
  • Input grouping:
    One group; single common
  • Input voltage range:
    0 to 132 Vac, 50/60 Hz
  • Rated input current:
    12 mA typical
  • On-state voltage:
    74 to 132 Vac
  • Off-state voltage:
    0 to 20 Vac
  • Minimum on-state current:
    6 mA
  • Maximum off-state current:
    2.2 mA
  • On response time:
    30 ms maximum
  • Off response time:
    45 ms maximum
  • Field isolation:
    250 Vac continuous; 1500 Vac for 1 minute
  • Backplane current:
    90 mA from 5 Vdc bus
  • Channel indicators:
    16 green LEDs
  • Remote interface support:
    Firmware 2.30 or later
  • Insertion method:
    Hot insertion/removal supported
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    3.4 x 14.5 x 14 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications AC Field Source Remote Rack Input Proof

Features:

  • Sixteen 120 Vac inputs arranged as one common group
  • Optical isolation between field circuits, backplane, and frame ground
  • Documented RX3i hot-insertion and remote-rack support
IC694MDL240 is the AC-input boundary for one sixteen-point group in an RX3i rack.

Its response thresholds and isolation let the controller interpret energized field circuits without sharing the field potential with the backplane.

Remote-rack firmware, terminal hardware, and AC-source records should be settled before a planned exchange.

Availability of IC694MDL240 is subject to Apter Power's current inventory and sourcing confirmation.
IC694MDL240 PACSystems RX3i AC Input Module Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
IC694MDL240 PACSystems RX3i AC Input Module Specs

General

  • ManufacturerGeneral Electric
  • ModelIC694MDL240
  • ConditionNew Original ready stock
  • Product FamilyPACSystems RX3i Rack I/O
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Input-circuit boundary

  • Supply type: use the documented 50/60 Hz AC source only.
  • Common: keep all sixteen points on the approved single group.
  • Thresholds: evaluate field devices against the on/off state window.
  • Leakage: account for off-state current before accepting a channel.

RX3i remote-interface condition

  • Firmware: use the documented remote-interface version 2.30 or later.
  • Slot: record the remote rack location and point map.
  • Backplane: confirm the 5 Vdc current budget.
  • Recovery: retain the approved controller and rack restart sequence.

Commissioning evidence

  • De-energized state: measure residual voltage at each field point.
  • Energized state: prove the source and channel indication together.
  • Isolation: keep field wiring separated from backplane references.
  • Records: retain terminal numbers, results, and test conditions.
Description
Only an AC field source belongs on IC694MDL240, whose sixteen inputs operate from one common group across the documented 0 to 132 Vac range. This boundary matters when an older cabinet drawing uses a generic digital-input symbol without identifying the actual supply type.

Inside PACSystems RX3i rack I/O, IC694MDL240 converts the field states into backplane data while providing optical separation between the field side, backplane, and frame ground. Sixteen green indicators give channel-state visibility at the module face.

Remote I/O planning for IC694MDL240 should account for the documented minimum firmware level of the Ethernet remote-interface unit and follow the official hot-insertion procedure. Preserve the removable terminal assignment, common wiring, source frequency, and input timing requirements before commissioning.
Alternative Names
IC694 MDL 240 IC694-MDL-240 GE IC694MDL240 RX3i 120 Vac input module PACSystems sixteen-point AC input card
Technical notes
Do not apply a DC field source to IC694MDL240. For remote RX3i racks, the documented Ethernet remote-interface support begins at firmware version 2.30; retain the single-common wiring, 50/60 Hz source, terminal-block scope, and official hot-insertion procedure before energizing or removing the module. Maintain safe field isolation throughout the work.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which remote-rack condition must be met before IC694MDL240 is assigned behind an RX3i Ethernet interface?
Use the documented remote-interface firmware version 2.30 or later and retain the rack, slot, and controller configuration evidence.
Why can a DC source not be substituted for the AC supply specified for IC694MDL240?
The input circuit is documented for 0 to 132 Vac at 50/60 Hz; a DC source falls outside that published operating definition.
When an IC694MDL240 point remains indicated off, which measurements should lead diagnosis?
Measure field voltage, source frequency, common continuity, off-state leakage, terminal continuity, and the controller point state before condemning the module.
What does the optical isolation of IC694MDL240 protect in an RX3i rack?
GE documents separation of the field side from the backplane and frame ground; it does not eliminate correct commoning, insulation, or safe isolation practices.
How should hot insertion of IC694MDL240 be controlled during maintenance?
Follow the manufacturer procedure, establish the approved field-circuit state, record the slot and terminal block, and verify rack diagnostics after insertion.
Which evidence makes an IC694MDL240 sourcing request installation-ready?
Provide the complete label, rack type, local or remote position, firmware record, removable terminal requirement, AC source details, quantity, and destination.
