MVI56-DFCMR

/ 4.9
1001 reviews | Need a Specific Revision?

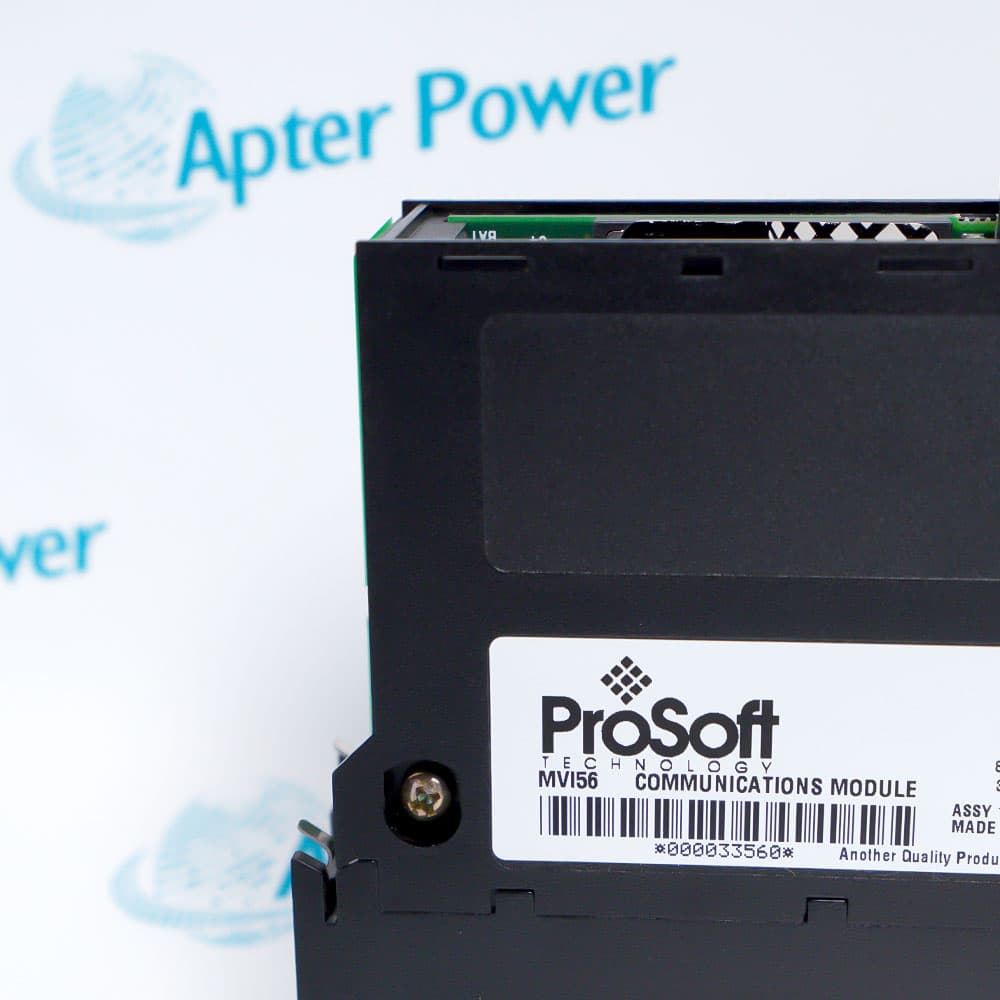

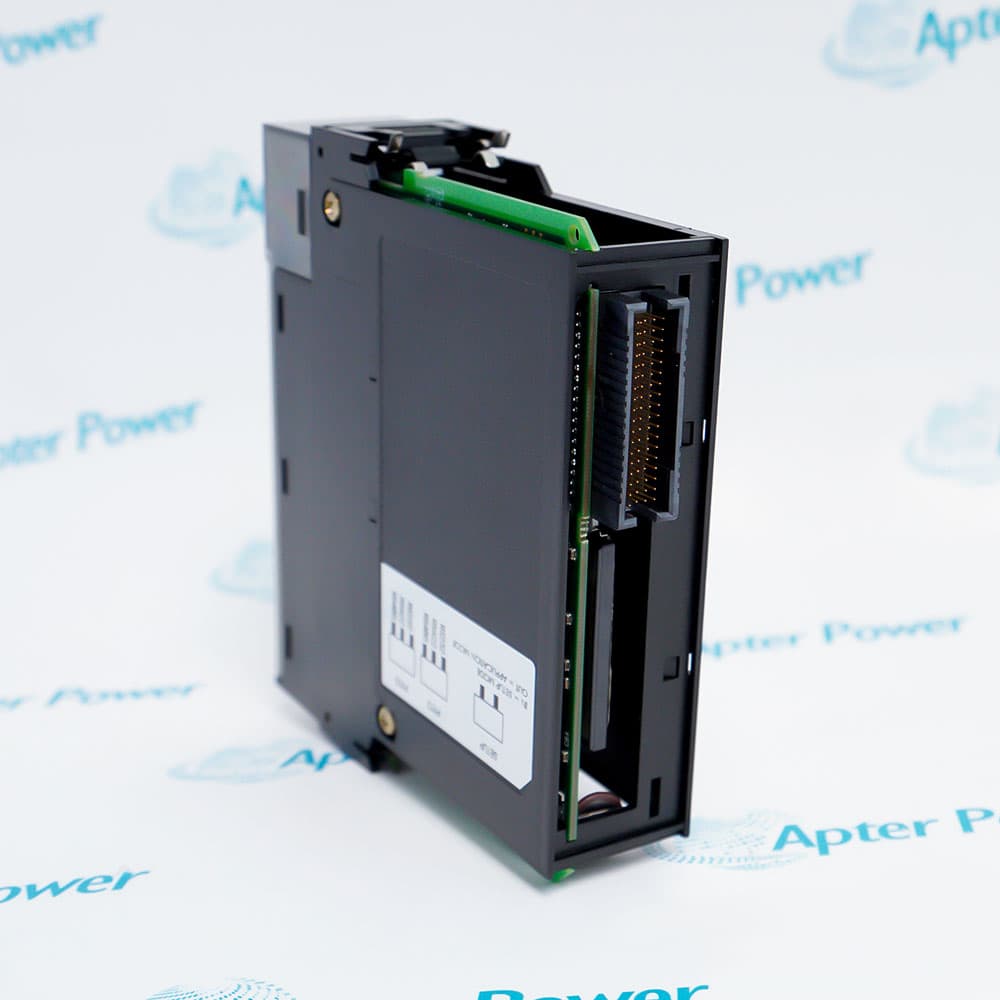

The ProSoft MVI56-DFCMR adds DF1 half/full duplex master and slave communication to ControlLogix systems through two configurable serial ports.
In Stock
Ships by Saturday, October 17
Fast Shipping Available
Get a quick price for MVI56-DFCMR
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MVI56-DFCMR

  • Manufacturer:
    ProSoft
  • Part Number:
    MVI56-DFCMR
  • Product Family:
    ProSoft
  • Product Type:
    DF1 Half/Full Duplex Master/Slave Communication Module
  • Stock:
    3
  • Baud rate range:
    110 to 115,200 baud
  • Backplane current load:
    800mA @ 5VDC (typical)
  • Operating temperature:
    0°C to 60°C
  • Storage temperature:
    –40°C to 85°C
  • Shock:
    30g (operating), 50g (non-operating)
  • Vibration:
    5g 10-150Hz
  • CFG Port (CFG):
    RJ45 (DB-9M with supplied cable); RS-232 only
  • Baud rate:
    110 to 115,200 baud, depending on protocol; RS-232, 485 and 422; Parity: none, odd or even; Data bits: 5, 6, 7, or 8; Stop bits: 1 or 2; RTS on/off delay: 0 to 65535 ms
  • Shipped with Unit:
    RJ45 to DB-9M cables for each port; 6-foot RS-232 configuration cable
  • Weight:
    0.22 kg
  • Estimated shipping dimensions:
    3.6x14x14.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Configuration Communication Application Scenarios

Features:

  • Dual configurable serial ports supporting independent DF1 master or slave operation with half-duplex and full-duplex communication.
  • User-configurable database supporting storage and transfer of up to 5000 registers with floating-point data handling.
  • Optimized reduced I/O data block architecture for efficient communication in remote ControlLogix, ControlNet, and Ethernet installations.
The ProSoft MVI56-DFCMR provides an effective way to integrate DF1-compatible equipment into ControlLogix automation systems. By supporting both local and remote rack installations, the module offers flexibility for distributed control architectures across a wide range of industrial processes. Its compatibility with numerous DF1 devices helps simplify system integration while extending communication capabilities.

Two configurable serial ports allow the module to communicate with PLCs, power monitoring equipment, radios, modems, and other DF1-enabled devices. Independent master or slave configuration on each port makes it suitable for data collection, controller-to-controller communication, and SCADA applications. Comprehensive communication settings enable adaptation to different serial network requirements without additional hardware.

The module is especially valuable in facilities that require dependable serial communications between modern ControlLogix processors and existing DF1 networks. Industries including mining, food processing, offshore production, pipelines, and pulp and paper benefit from its configurable memory management, asynchronous data exchange, and reliable communication diagnostics. User-defined ladder logic configuration also simplifies implementation within established Rockwell Automation control environments.

The MVI56-DFCMR ProSoft DF1 Half/Full Duplex Master/Slave Communication Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ProSoft MVI56-DFCMR DF1 Half/Full Duplex Master/Slave Communication Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ProSoft MVI56-DFCMR DF1 Half/Full Duplex Master/Slave Communication Module Specs

General

  • Manufacturer ProSoft
  • Model MVI56-DFCMR
  • Condition New Original ready stock
  • Product Family MVI56-PDPS,MVI56-PDPMV1,MVI56-MDA4
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Memory Mapping: The module performs backplane memory mapping in the ControlLogix processor through definable I/O data blocks.
  • Software Tools: Graphical parameter configuration is performed using dedicated ProSoft Configuration Builder (PCB) software.
  • Text Storage: Configuration information is stored in plain text format, facilitating offline backup and batch modification.
  • Status Monitoring: A rich built-in error code diagnostic buffer is available, which can be viewed directly through user-defined data types (UDTs).
  • Dual Serial: Provides two independent serial communication ports, supporting RS-232, RS-422, or RS-485 hardware interfaces.
  • Protocol Compatibility: Each port can be independently configured as a DF1 full-duplex or half-duplex master or slave mode.
  • Message Control: Supports seamless packet interception and polling control, with a maximum communication rate of 115.2 Kbps.
  • Hardware Isolation: The communication ports have built-in electrical isolation protection, effectively resisting electromagnetic interference in the field.
  • Traditional Upgrade: Used to integrate older Allen-Bradley PLC-5 or SLC 500 systems into the ControlLogix platform.
  • Instrument Networking: Connects distributed DF1 RTU devices to remote pumping stations or oil pipelines via wireless data radios.
  • Barcode Integration: Integrates data from serial barcode scanners or weighing instruments into the main controller in real time on logistics conveyor lines.
  • Heterogeneous Interconnection: Enables data exchange between the Rockwell control system and third-party civilian/industrial equipment supporting the DF1 protocol.
Description
The ProSoft MVI56-DFCMR is a ControlLogix backplane-compatible communication module that enables Rockwell Automation ControlLogix I/O compatible processors to communicate with DF1 protocol compatible devices. It operates as a single-slot module and can be installed in either a local or remote rack, making it suitable for distributed industrial control systems. The reduced I/O data block design is particularly beneficial for ControlNet and Ethernet applications where the module is installed in a remote chassis.

Designed for flexible serial communication, the ProSoft MVI56-DFCMR features two independent DF1 serial ports that can each be configured as either a master or a slave. Both half-duplex and full-duplex operating modes are supported, along with CRC and BCC error checking for dependable data transmission. Full hardware handshaking provides compatibility with radios, modems, and multi-drop communication networks.

The module exchanges data asynchronously between the DF1 network and the ControlLogix processor through an internal database. Memory allocation is completely user configurable, allowing storage and transfer of up to 5000 registers between the processor and connected DF1 devices. Read and write command lengths of up to 125 words are supported, and floating-point data movement is available for applications requiring advanced process values.

When configured as a master, the ProSoft MVI56-DFCMR can read from and write to remote DF1 devices, allowing the ControlLogix processor to function as a SCADA sub-master. Each master port supports up to 100 fully configurable commands with adjustable slave addressing, register mapping, polling methods, and word or byte counts. Individual command error codes and slave status information simplify communication diagnostics.

The ProSoft MVI56-DFCMR is widely used in foreign device data concentrators, SCADA systems, pipelines, offshore platforms, food processing, mining, and pulp and paper industries. Configuration data is obtained through user-defined ladder logic, while data transfer between the module and processor is handled through the 1756 backplane. Tested hardware connections include Rockwell Automation processors, PanelView terminals, and power monitoring equipment, demonstrating broad compatibility across industrial automation applications.
Revisions

Revision Part #

Also known as

MVI56-DFCMR Ser A
MVI56-DFCMR/A, Series A, Rev A
Alternative Names
MVI56-DFCM MVI56-MCM MVI56-MBP MVI56-GSC MVI56E-MCM MVI56-PDPS MVI56DFCMR MV156DFCMR
Technical notes
Streamline legacy equipment migration with the MVI56-DFCMR module, designed to seamlessly link modern ControlLogix processors to classic PLC-5 or SLC 500 systems. This dual-port DF1 master/slave communication interface transfers large data blocks directly via high-speed backplane mapping without code complexity.
